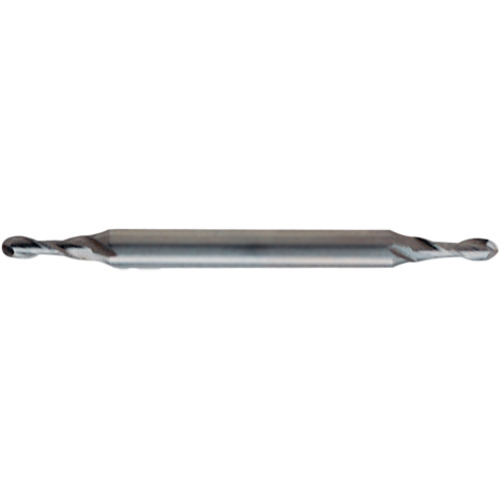

Ball Nose End Mill; 1/8″ Dia. × 3/8″ LOC × 3/16″ Shank Dia. × 2-1/4″ OAL ; 2 FL ; HSS ; TiCN ; Series E1013
| Cutting Diameter (DC) | 1/8″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Radius (RE) | 1/16″ |
| Depth of Cut Maximum (APMX) | 3/8″ | End Shape | Ball Nose |
| Overall Length (OAL) | 2-1/4″ | Decimal Equivalent | 0.125″ |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Coating | TiCN | Series/List # | E1013 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0.0225
