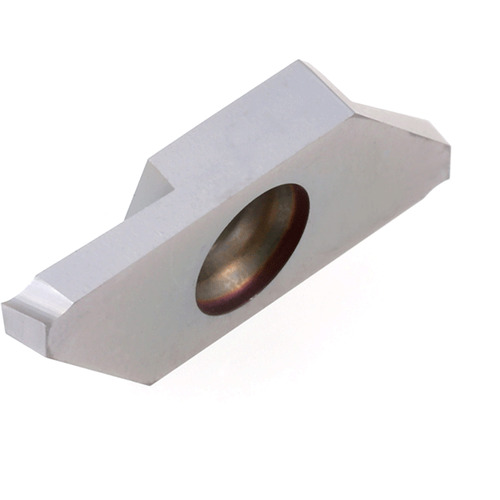

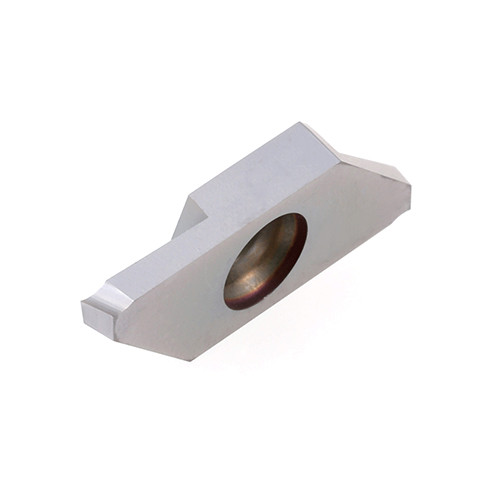

CTPA20FLK DT4
Parting Off Insert; 0.0787″ CW × 0.984″ Length × 0.138″ Thickness ; Carbide ; TiAlN ; DT4

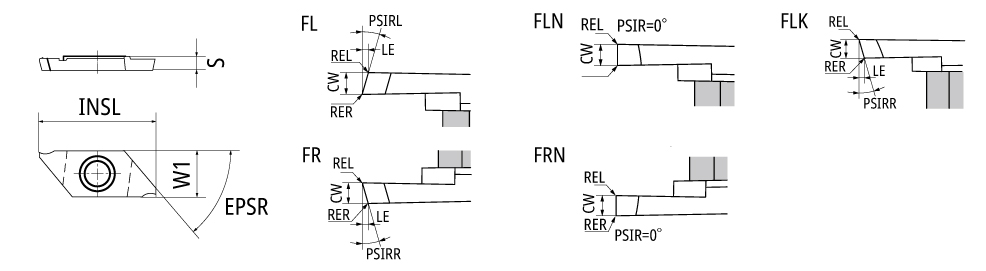

| Cutting Width (CW) | 0.0787″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 0.138″ | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Insert Length (INSL) | 0.984″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.571″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | DT4 | Cutting Edge Angle Major Right Hand (PSIRR) | 16 Degrees |
| Application | | Inserts for miniature | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.5
