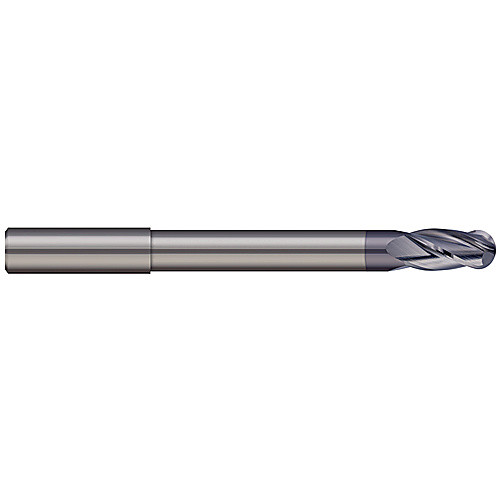

6 mm Dia. × 6 mm Shank × 12 mm DOC × 100 mm OAL, Carbide AlTiN, 4 Flute, CW|30° Helix, Ballnose End Mill
| Cutting Diameter (DC) | 6 mm | Corner Radius (RE) | 3 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Neck Diameter (DN) | 5.5 mm |
| Depth of Cut Maximum (APMX) | 12 mm | Neck Length (LN) | 88 mm |
| Overall Length (OAL) | 100 mm | Tool Type | Ballnose Endmill |
| Cutting Edge Material | Carbide | Length Group | 2D |
| Coating | AlTiN | End Shape | Ball |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Shank Length (LS) | 1.968″ |
| Usable Length (LU) | 50 mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.1
