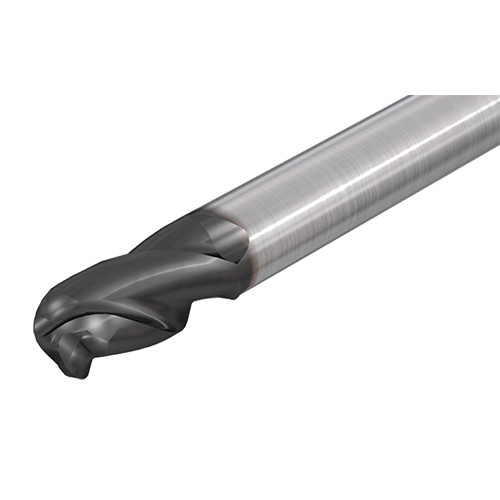

EB-H3 06-12C06CFH57 IC902
BN End Mill; 6 mm Dia. × 12 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 3 FL ; Carbide ; AlTiN

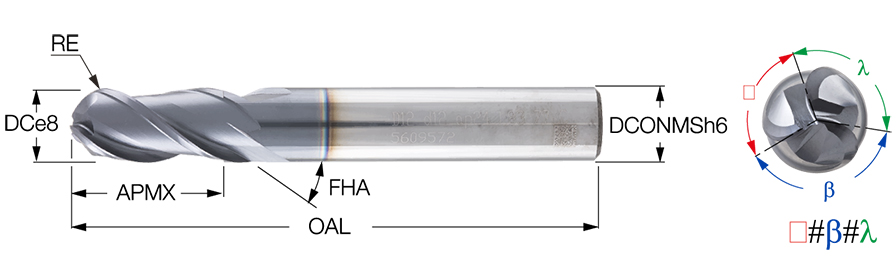

| Cutting Diameter (DC) | 6 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 3 mm |
| Depth of Cut Maximum (APMX) | 12 mm | Corner Radius Tolerance (+/-) (RETOL) | 0.01 mm |
| Overall Length (OAL) | 57 mm | Grade | IC902 |
| Cutting Edge Material | Carbide | Tool Type | Solid ball nose |
| Coating | AlTiN | End Shape | Square |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 3/5 flute solid carbide ball nose endmills with different helix and variable pitch for roughing and finishing of hard materials up to 65 HRC. | Country of Origin | Israel |
| Remarks | For user guide, click on More Info |
Shipping Info
Package Weight
0.055
