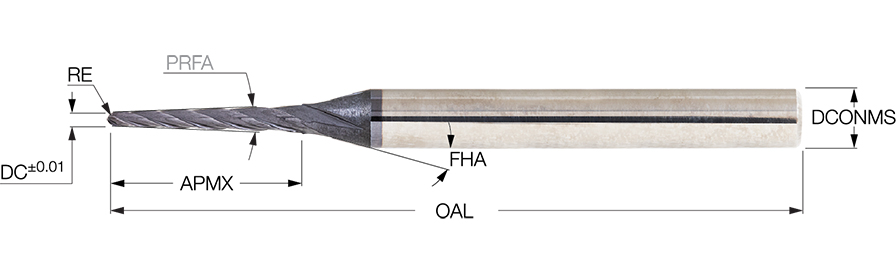

EBT-T4 012-08/1.5C4M45 IC903
| Cutting Diameter (DC) | 1.2 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.6 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Body Half Taper Angle (BHTA) | 1.5 Degrees |
| Overall Length (OAL) | 45 mm | Corner Radius Tolerance (+/-) (RETOL) | 0.01 mm |
| Cutting Edge Material | Carbide | Grade | IC903 |
| Coating | TiAlN | Tool Type | Solid ball nose |
| Flute Count (NOF) | 4 | End Shape | Square |
| Flute Helix Angle (FHA) | 25 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 1.2 mm |
| Applicable Material | Steel |Stainless Steel |Cast Iron |Hard Materials |Hi Temp Alloys | | Measurement Type | Metric |
Product Features
| Family Description | 4 flute, 25° helix solid carbide tapered ball nose. Used for rib processing on hardened steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.023
