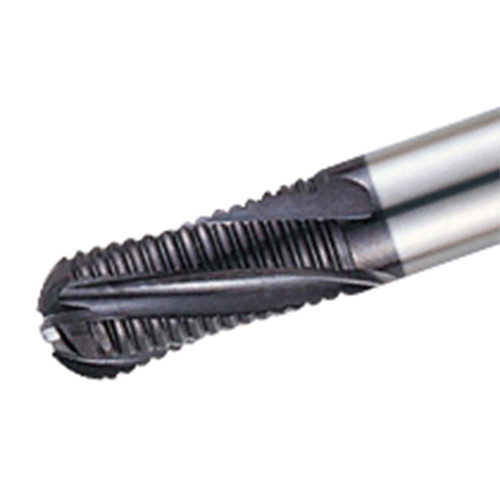

EBRF-T3 08-16C08M63 IC903
BN End Mill; 8 mm Dia. × 16 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 3 FL ; Carbide ; AlTiN

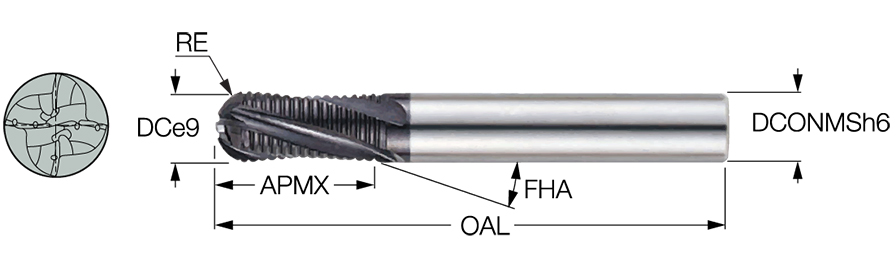

| Cutting Diameter (DC) | 8 mm | Corner Radius (RE) | 4 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Corner Radius Tolerance (+/-) (RETOL) | 0.01 mm |
| Depth of Cut Maximum (APMX) | 16 mm | Grade | IC903 |
| Overall Length (OAL) | 63 mm | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | End Shape | Square |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 20 Degrees | Style | Solid ball nose |
| Shank Type | Round | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | |
Product Features
| Family Description | 3, 4 flute, 20° helix long solid carbide ball nose endmills for roughing materials up to 55 HRC. | Country of Origin | Israel |
Shipping Info
Package Weight
0.09
