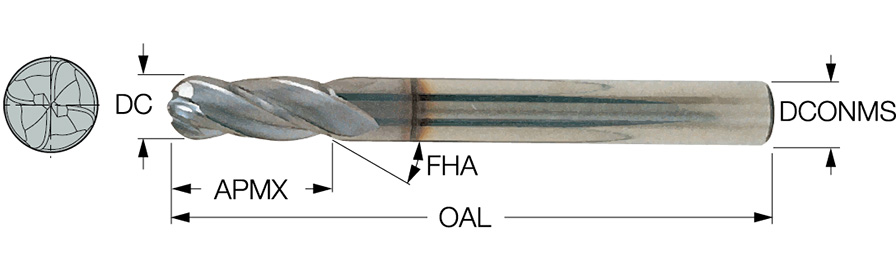

| Cutting Diameter (DC) | 1/8″ | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.062″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Grade | IC300 |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | End Shape | Square |
| Coating | TiCN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |

Product Features
| Family Description | 4 flute solid carbide ball nose endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
