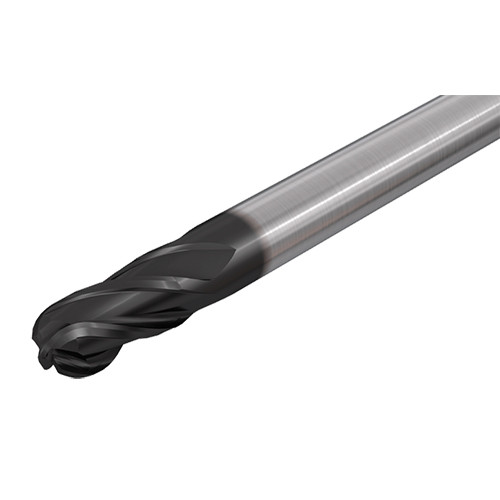

EBSI-A-4 188-250-C188 IC900
BN End Mill; 0.188″ Dia. × 1/4″ LOC × 0.188″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; AlTiN

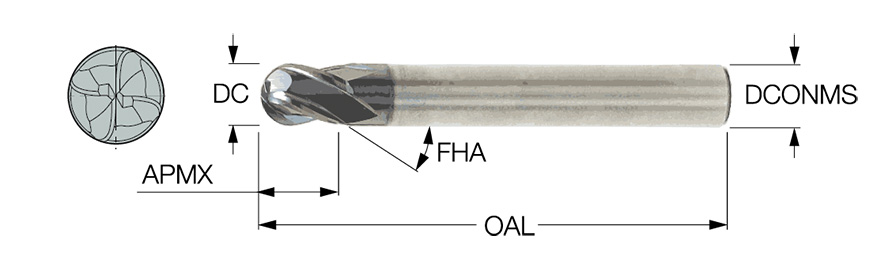

| Cutting Diameter (DC) | 0.188″ | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 0.188″ | Corner Radius (RE) | 0.094″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Grade | IC900 |
| Overall Length (OAL) | 2″ | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | End Shape | Square |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.188″ |
| Shank Type | Round | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 4 flute, 30° helix, short solid carbide ball nose endmills. | Country of Origin | Israel |
| Remarks | Short and stable design for profiling (finishing). |
Shipping Info
Package Weight
0.033
