EB-A2 05-10W06E57 IC900

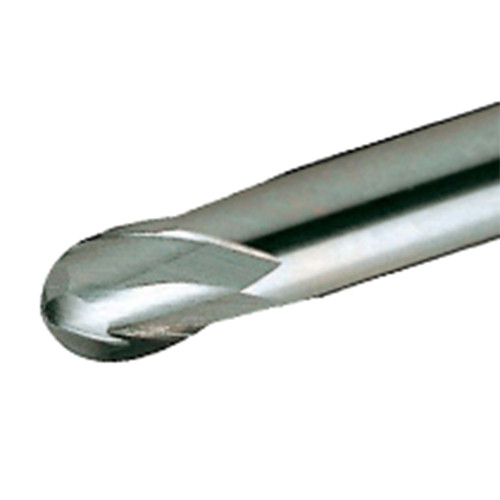

BN End Mill; 5 mm Dia. × 10 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 2 FL ; Carbide ; AlTiN

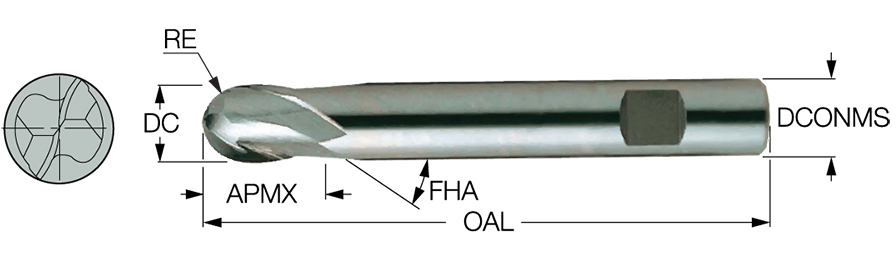

| Cutting Diameter (DC) | 5 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 2.5 mm |
| Depth of Cut Maximum (APMX) | 10 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 57 mm | Grade | IC900 |
| Cutting Edge Material | Carbide | Tool Type | Solid ball nose |
| Coating | AlTiN | End Shape | Square |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | SOLIDECO - economical type 2 flute, 30° helix ball nose solid carbide endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
0.052
