EB-A2 18-18/36C18M140 IC903

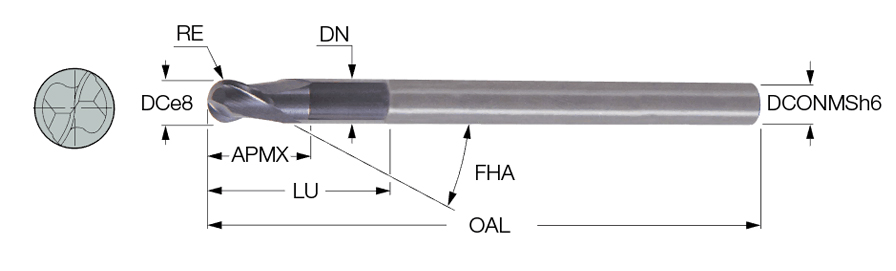

| Cutting Diameter (DC) | 18 mm | Usable Length (LU) | 36 mm |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Applicable Material | Steel|Stainless Steel|Hard Materials|Hi-Temp Alloys |
| Depth of Cut Maximum (APMX) | 18 mm | Corner Radius (RE) | 9 mm |
| Overall Length (OAL) | 140 mm | Grade | IC903 |
| Cutting Edge Material | Carbide | Tool Type | Sold Ball Nose |
| Coating | TiAlN | Length Group | Short|Stub |
| Flute Count (NOF) | 2 | End Shape | Square |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.375″ |
| Shank Type | Round | Measurement Type | Metric |
Product Features
| Family Description | 2 flute, 30° helix stub cut length high precision ball nose endmills with relieved necks for materials up to 65 HRC. | Country of Origin | IL |
Shipping Info
Package Weight
1.0540
