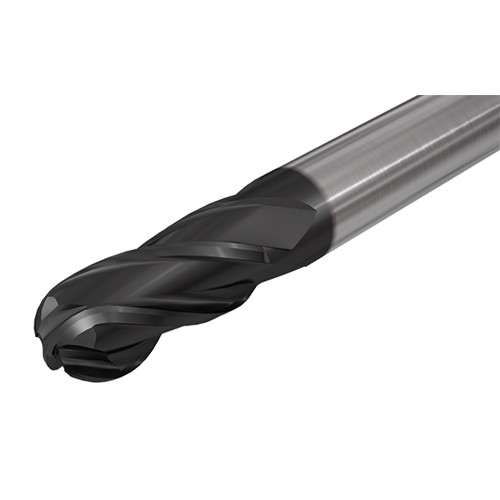

EB160A32-4C16 IC900
BN End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 16 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Corner Radius (RE) | 8 mm |
| Depth of Cut Maximum (APMX) | 32 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 92 mm | Grade | IC900 |
| Cutting Edge Material | Carbide | Tool Type | Solid ball nose |
| Coating | AlTiN | End Shape | Square |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 4 flute, 30° helix medium length solid carbide ball nose endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
0.52
