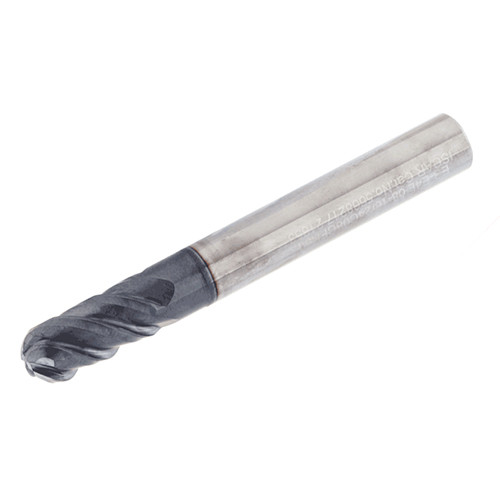

EB-E4L 10-20/30C10CFH72 IC902

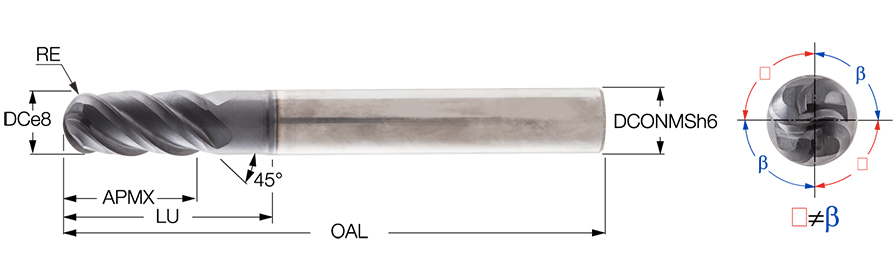

BN End Mill; 10 mm Dia. × 20 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 10 mm | Application | | Helical Interpolation | Profiling | Rampdown | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Corner Radius (RE) | 5 mm |
| Depth of Cut Maximum (APMX) | 20 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 72 mm | Corner Radius Tolerance (+/-) (RETOL) | 0.01 mm |
| Cutting Edge Material | Carbide | Grade | IC902 |
| Coating | AlTiN | Tool Type | Solid ball nose |
| Flute Count (NOF) | 4 | End Shape | Square |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| Usable Length (LU) | 30 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 4 flute, 45° helix ball nose endmills with 3xd relieved necks and variable pitch for chatter damping on hard materials. Full slot milling - up to 2XD. | Country of Origin | Israel |
Shipping Info
Package Weight
0.092
