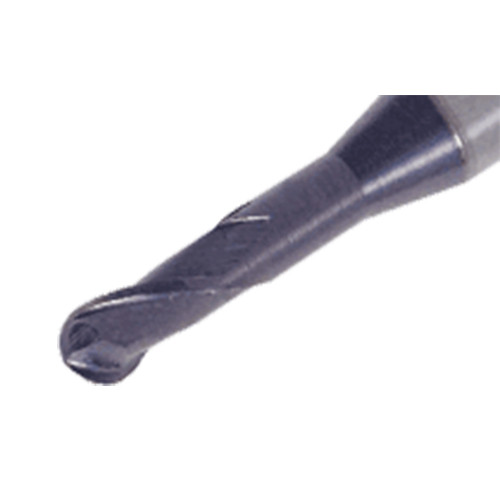

EB-A2 050-075/30C6M80 IC903
BN End Mill; 5 mm Dia. × 7.5 mm LOC × 6 mm Shank Dia. × 80 mm OAL ; 2 FL ; Carbide ; TiAlN

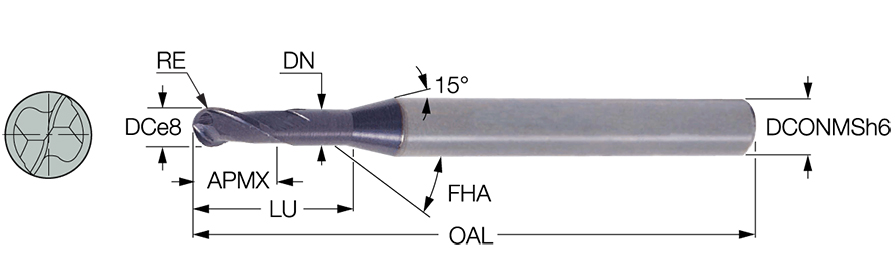

| Cutting Diameter (DC) | 5 mm | Corner Radius (RE) | 2.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Neck Diameter (DN) | 4.8 mm |
| Depth of Cut Maximum (APMX) | 7.5 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 80 mm | Corner Radius Tolerance (+/-) (RETOL) | 0.01 mm |
| Cutting Edge Material | Carbide | Grade | IC903 |
| Coating | TiAlN | Tool Type | Solid ball nose |
| Flute Count (NOF) | 2 | End Shape | Square |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| Usable Length (LU) | 30 mm | Maximum Feed per Tooth (fz(max)) | 0.044 mm/tooth |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Minimum Feed per Tooth (fz(min)) | 0.018 mm/tooth |
| Application | | Profiling | | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 2 flute, 30° helix rib processing solid carbide ball nose endmills for materials up to 55 HRC. | Country of Origin | China |
Shipping Info
Package Weight
0.073
