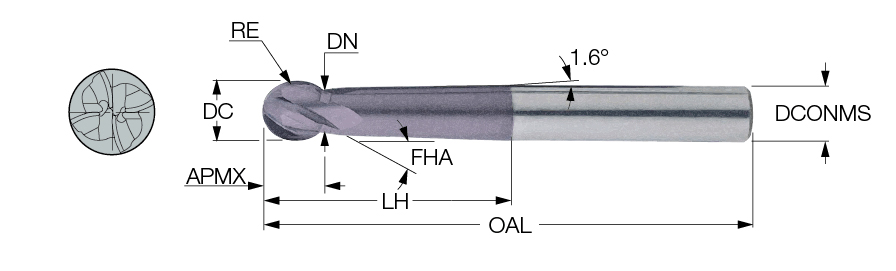

ESB-A4 05 3/38C06M80 IC903

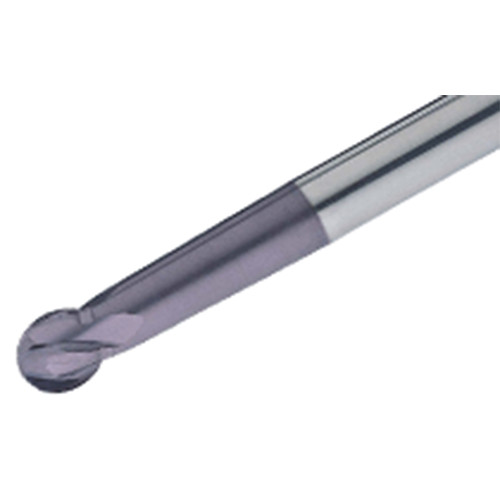

BN End Mill; 5 mm Dia. × 3.9 mm LOC × 6 mm Shank Dia. × 80 mm OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 2.5 mm |
| Depth of Cut Maximum (APMX) | 3.9 mm | Neck Diameter (DN) | 4.1 mm |
| Overall Length (OAL) | 80 mm | Body Half Taper Angle (BHTA) | 1.6 Degrees |
| Cutting Edge Material | Carbide | Grade | IC903 |
| Coating | AlTiN | Tool Type | Solid ball nose |
| Flute Count (NOF) | 4 | End Shape | Square |
| Flute Helix Angle (FHA) | 30 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| Usable Length (LU) | 38 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 4 flute, 30° helix spherical long solid carbide ball nose endmills for materials up to 65 HRC. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.066
