CRDNN 2525M12 INDEX TURN

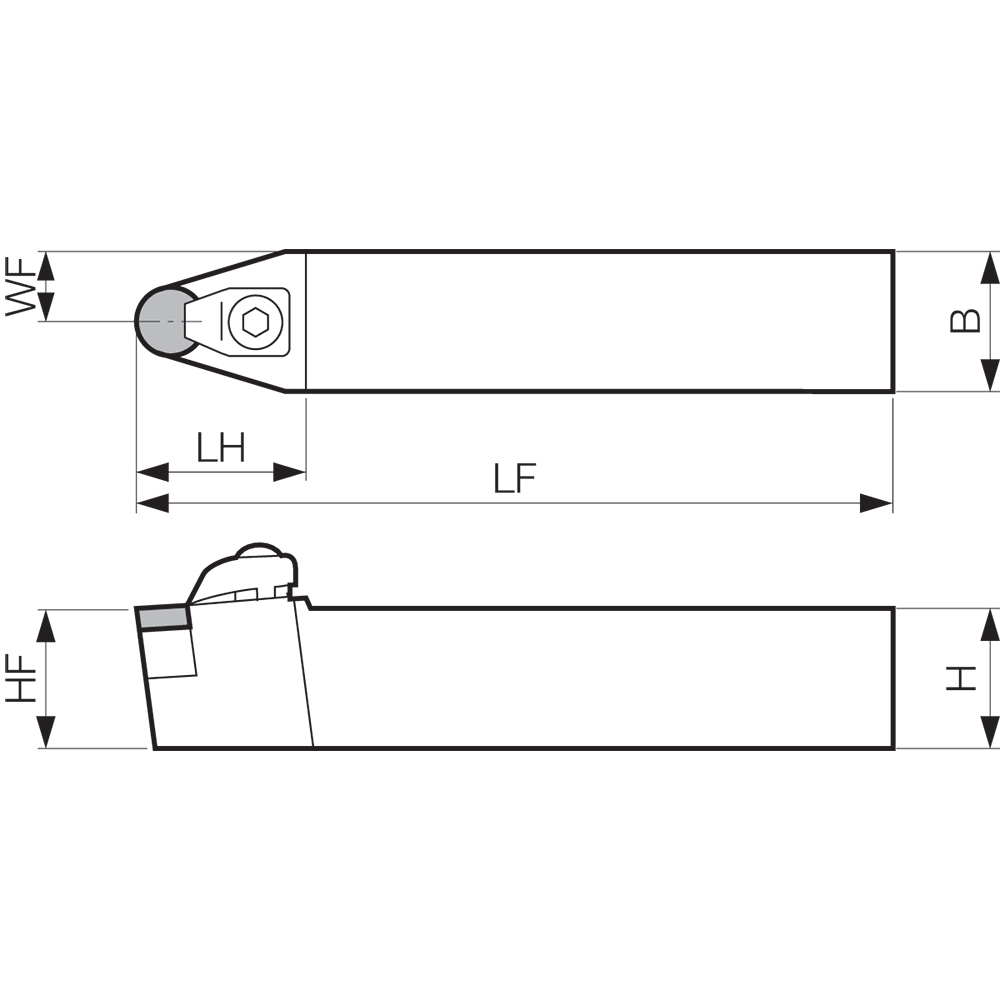

Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 28 mm LH ; Neutral ; Steel ; Series CRDN
| Shank Height (H) | 25 mm | Application | External Turning | Copying |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -8.5 Degrees |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Head Length (LH) | 28 mm | Clamping System | Top Clamp |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Series/List # | CRDN |
| Master Insert Identification (MIID) | RNG45… |
Product Features
| Family Description | Alternate Manufacture # CRDNN2525M12 | Country of Origin | China |
Shipping Info
Package Weight
1.5961
