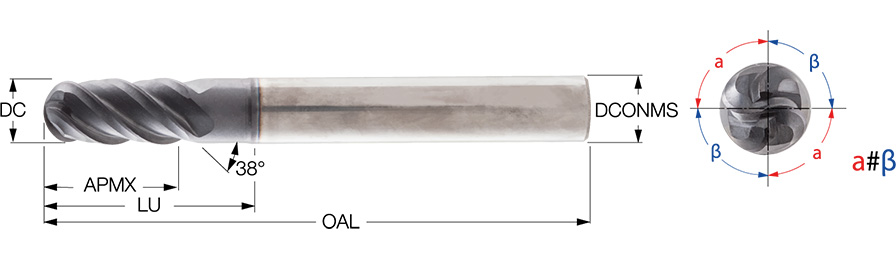

EBI-E4L 500-1.0/1.4C500CF IC902
BN End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/2″ | Neck Diameter (DN) | 0.492″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Body Half Taper Angle (BHTA) | 20 Degrees |
| Depth of Cut Maximum (APMX) | 1″ | Grade | IC902 |
| Overall Length (OAL) | 3-1/2″ | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | End Shape | Square |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 1.4″ | Maximum Feed per Tooth (fz(max)) | 0.0027 ″/tooth |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Application | | Helical Interpolation | Profiling | Rampdown | | Connection Code Machine Side (CCMS) | Cylindrical |
| Corner Radius (RE) | 0.249″ |
Product Features
| Family Description | 4 flute, 38° helix ball nose endmills with variable pitch for roughing on hard materials. Full slot milling - up to 2XD. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
