47B-1202R4RB22 IN2005

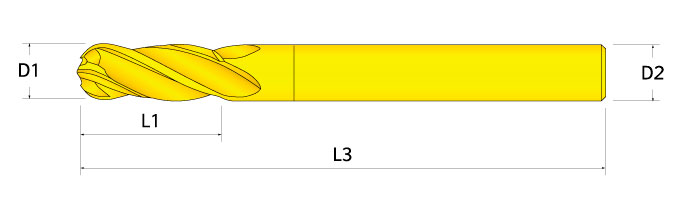

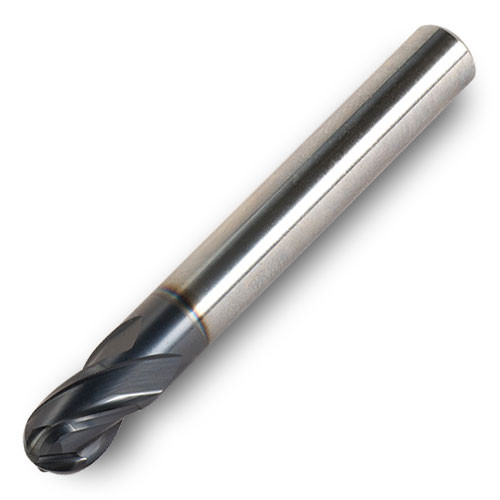

BN End Mill; 1/8″ Dia. × 1/4″ LOC × 1/8″ Shank Dia. × 2-1/4″ OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 1/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.062″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Grade | IN2005 |
| Overall Length (OAL) | 2-1/4″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | End Shape | Square |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Usable Length (LU) | 1/4″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.022
