S20GSCLCL09 EXTL SLEEVE

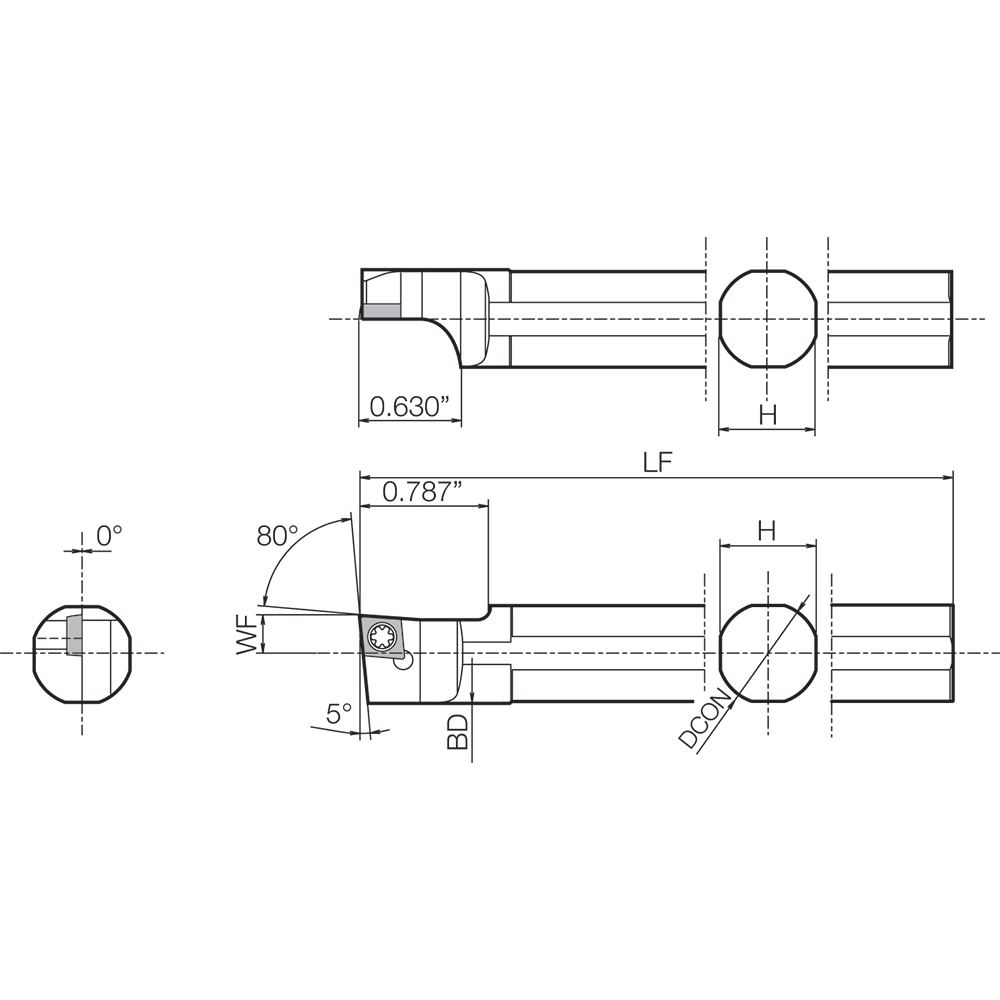

Turning Toolholder; 90 mm OAL × 18 mm Shank Height × 18 mm Shank Width × 20 mm Shank Dia. ; Steel ; Series S SCLC
| Shank Height (H) | 18 mm | Coolant Supply Property (CSP) | External |
| Shank Width (B) | 18 mm | Rake Angle Radial (GAMF) | 7 |
| Overall Length (OAL) | 90 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Clamping System | Screw Clamp |
| Inscribed Circle Diameter (IC) | 9.53 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | CCGT325… | CCMT325… | CCGW325… | CCMW325… | Series/List # | S…SCLC |
Product Features
| Family Description | Alternate Manufacture # S20GSCLCL09 | Country of Origin | Japan |
Shipping Info
Package Weight
0.489
