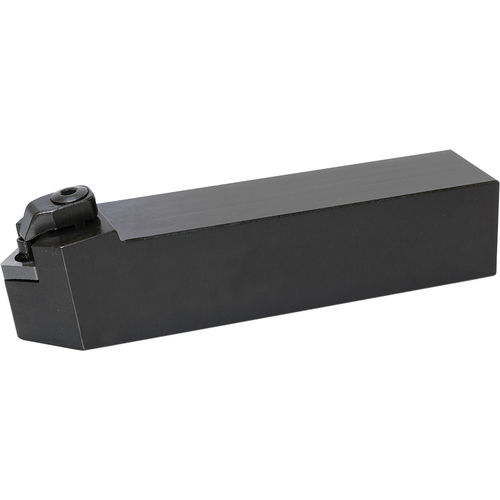

HSDNN 204D INDEXTURN HLDR
Turning Toolholder; 6″ OAL × 1 1/4″ Shank Height × 1 1/4″ Shank Width × 1.3″ LH ; Neutral ; Steel ; Series HSDN

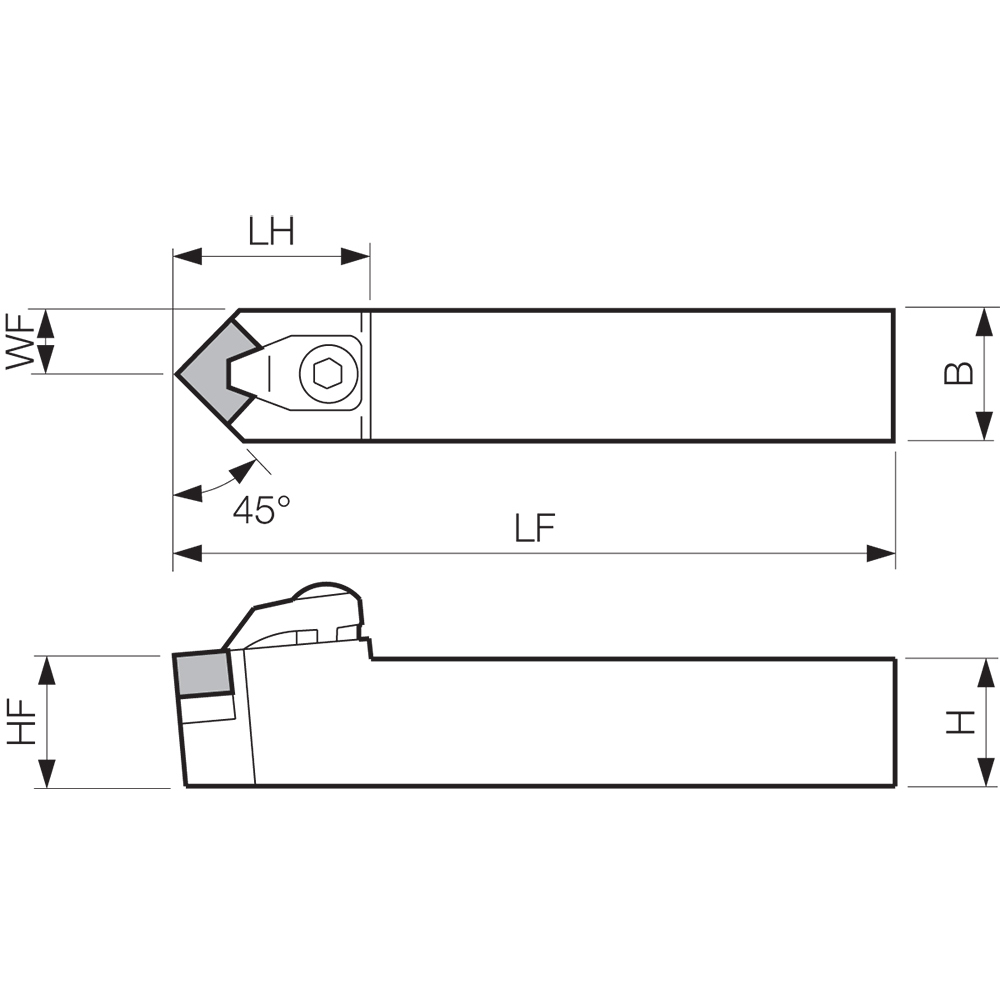

| Shank Height (H) | 1 1/4″ | Application | External Turning | Chamfering |
| Shank Width (B) | 1 1/4″ | Rake Angle Axial (GAMP) | -8.5 Degrees |
| Overall Length (OAL) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.3″ | Clamping System | Top Clamp |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Series/List # | HSDN |
| Master Insert Identification (MIID) | SNG45... | SNM45… |
Product Features
| Family Description | Alternate Manufacture # HSDNN204D | Country of Origin | USA |
Shipping Info
Package Weight
2.6500
