EB-A2 020-016/16C4H50 IC702

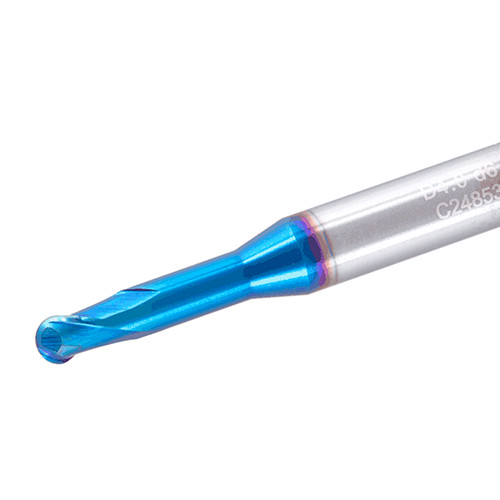

BN End Mill; 2 mm Dia. × 1.6 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; AlTiCrSiN

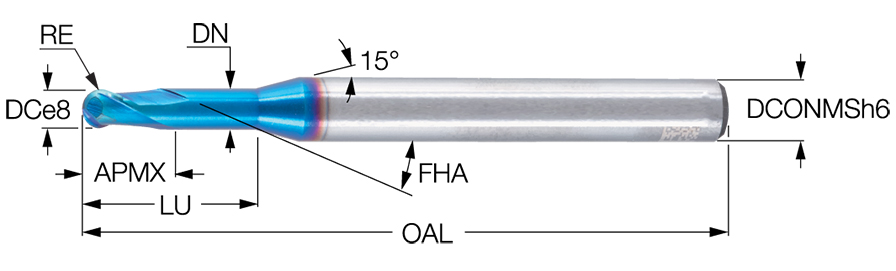

| Cutting Diameter (DC) | 2 mm | Neck Diameter (DN) | 1.95 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 1.6 mm | Corner Radius Tolerance (+/-) (RETOL) | 0.005 mm |
| Overall Length (OAL) | 50 mm | Grade | IC702 |
| Cutting Edge Material | Carbide | Tool Type | Solid ball nose |
| Coating | AlTiCrSiN | End Shape | Square |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| Usable Length (LU) | 16 mm | Maximum Feed per Tooth (fz(max)) | 0.07 mm/tooth |
| Applicable Material | | Steel | Hard Materials | | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Application | | Profiling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Corner Radius (RE) | 1 mm |
Product Features
| Family Description | 2 flute, 30° helix rib processing solid carbide ball nose endmills for materials up to 65 HRC. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.024
