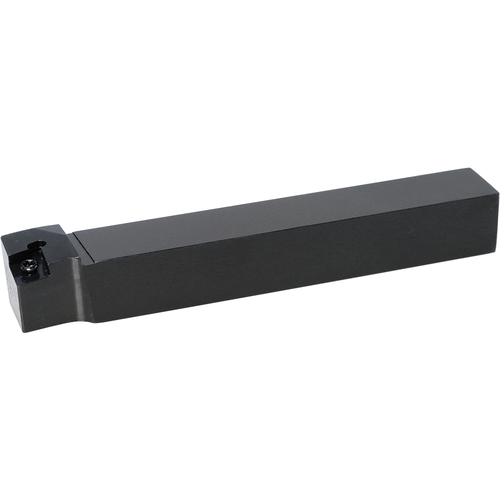

SCLNR 1024CF INDEX TURN

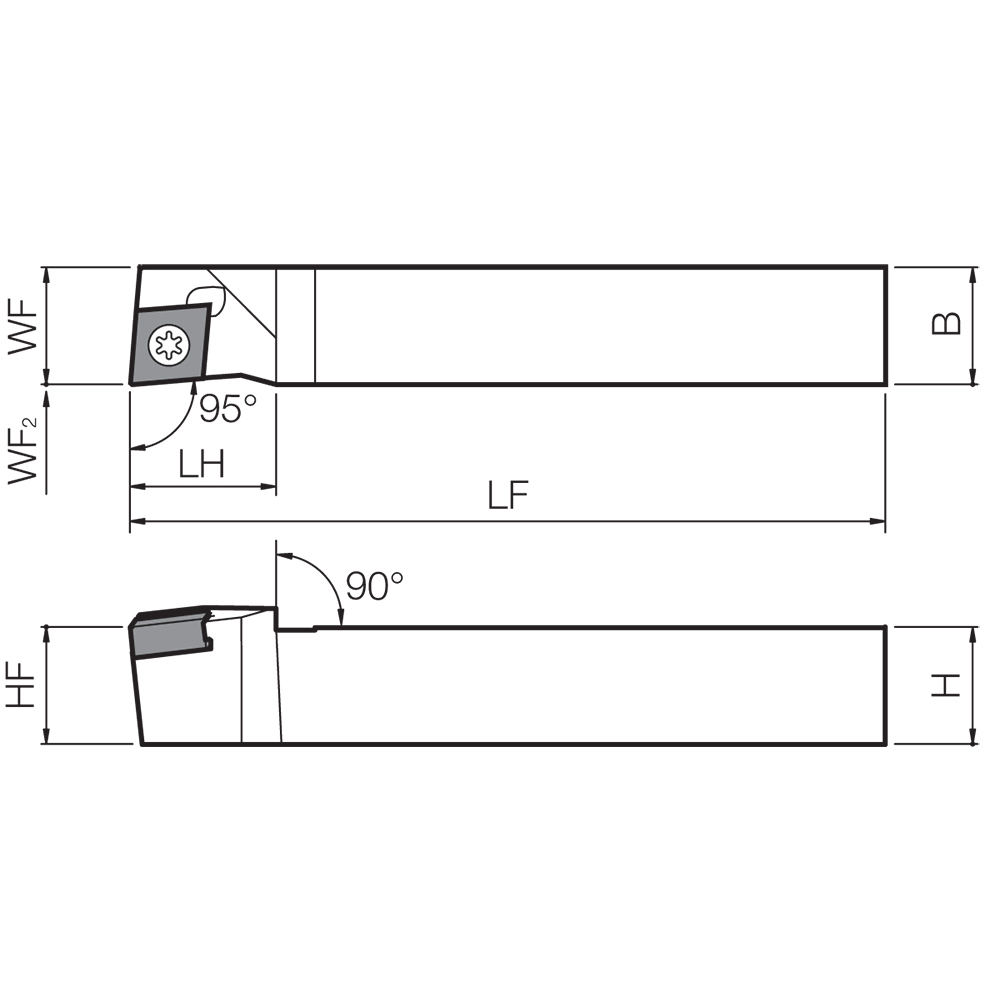

Turning Toolholder; 5″ OAL × 5/8″ Shank Height × 5/8″ Shank Width × 0.5906″ LH ; Right Hand ; Steel ; Series SCLN
| Shank Height (H) | 5/8″ | Application | Swiss | External Turning | Facing |
| Shank Width (B) | 5/8″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 5″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 0.5906″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 0.2953″ | Clamping System | Screw Clamp |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | CNGU242… | Series/List # | SCLN |
Product Features
| Family Description | Alternate Manufacture # SCLNR1024CF | Country of Origin | China |
Shipping Info
Package Weight
.5253
