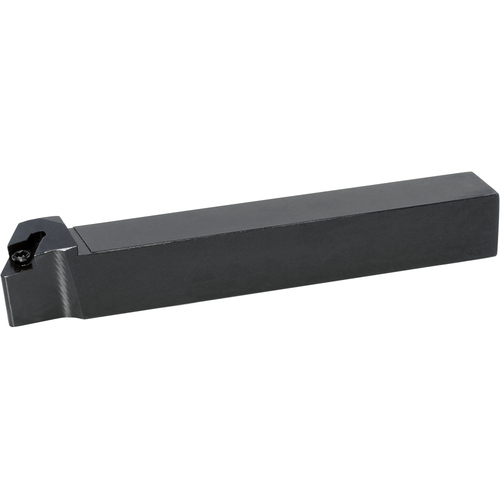

SDLNR1212F08FF INDEX TURN
Turning Toolholder; 85 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 18 mm LH ; Right Hand ; Steel ; Series SDLN

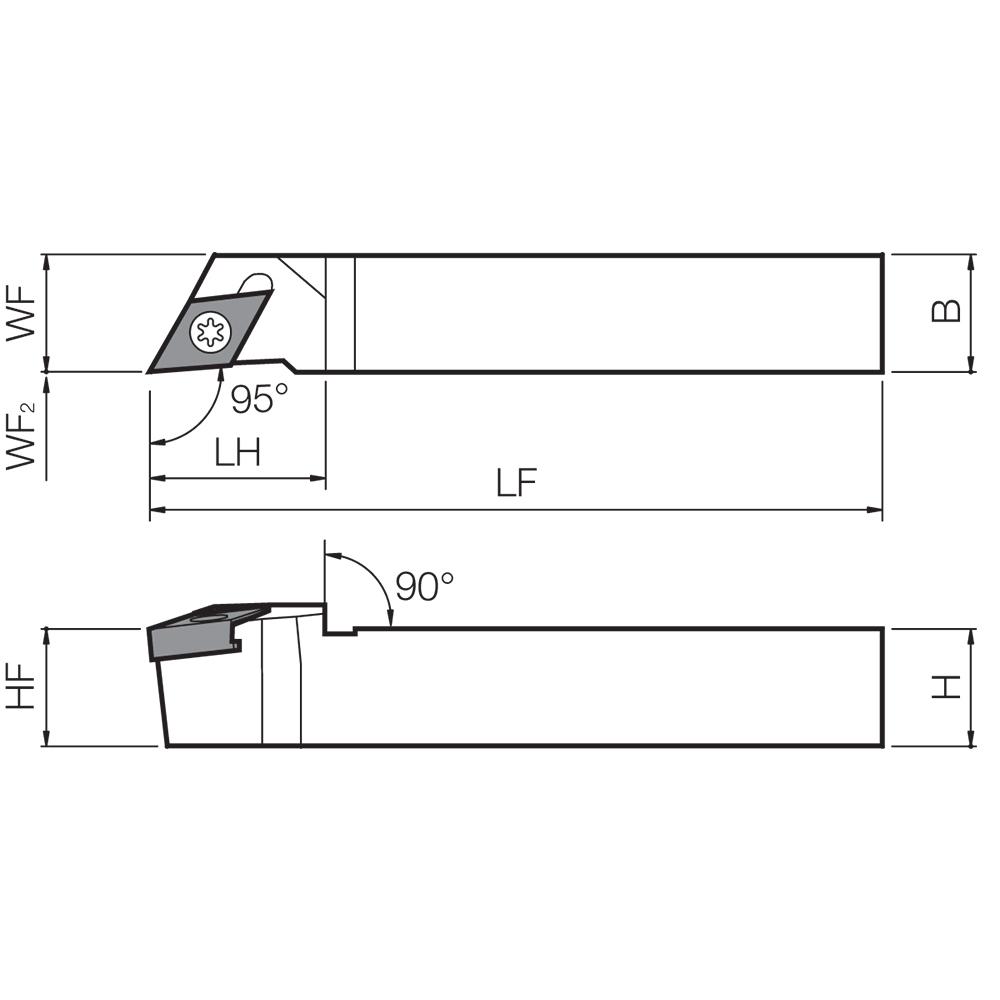

| Shank Height (H) | 12 mm | Application | Swiss | External Turning | Copying |
| Shank Width (B) | 12 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 85 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Head Length (LH) | 18 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 7 mm | Clamping System | Screw Clamp |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | DNGU222… | Series/List # | SDLN |
Product Features
| Family Description | Alternate Manufacture # SDLNR1212F08FF | Country of Origin | Japan |
Shipping Info
Package Weight
.2756
