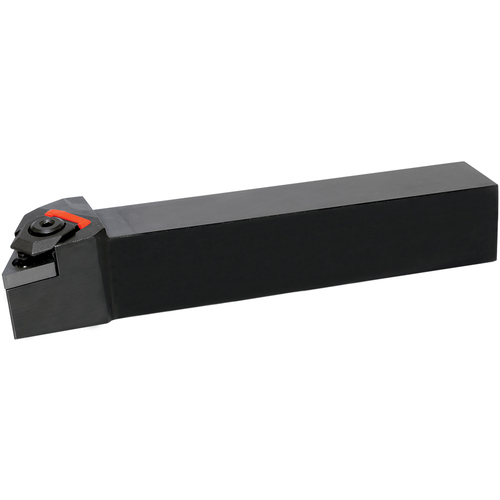

WTJNR 123C INDEXTURN HLDR
Turning Toolholder; 5″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1.2598″ LH ; Right Hand ; Steel ; Series WTJN
| Shank Height (H) | 3/4″ | Application | External Turning | Copying |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 5″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 1.2598″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ | Clamping System | Wedge Lock |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | TN_A33… | TN_G33… | TN_M33… | TN_X33… | Series/List # | WTJN |
Product Features
| Family Description | Alternate Manufacture # WTJNR123C | Country of Origin | China |
Shipping Info
Package Weight
1.0140
