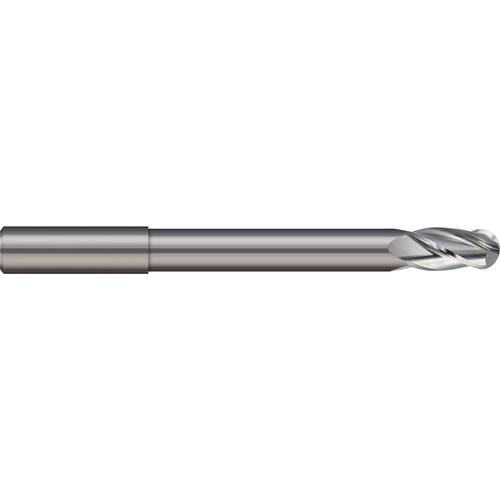

MMBM-008-5 0.8mm 50mm OAL 2 Flute Center Cutting 30 Helix Reduced Neck Ball Nose Mold Making End Mill - Uncoated
BN End Mill; 0.8 mm Dia. × 0.8 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 0.8 mm | Usable Length (LU) | 5 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.4 mm |
| Depth of Cut Maximum (APMX) | 0.8 mm | Neck Diameter (DN) | 0.78 mm |
| Overall Length (OAL) | 50 mm | Neck Length (LN) | 49.2 mm |
| Cutting Edge Material | Carbide | Tool Type | Ballnose Endmill |
| Coating | Uncoated | Length Group | 1D |
| Flute Count (NOF) | 2 | End Shape | Ball |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.04
