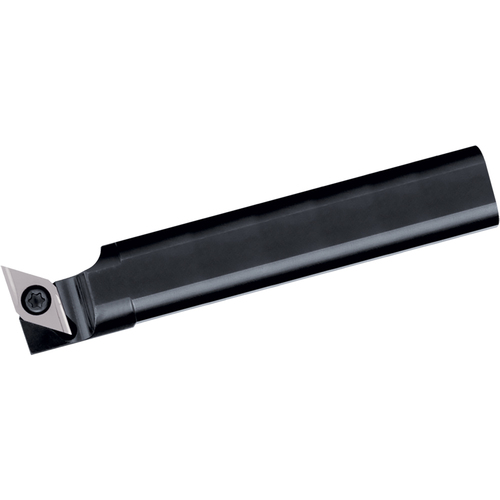

S19GSDLCL11 EXTL SLEEVE

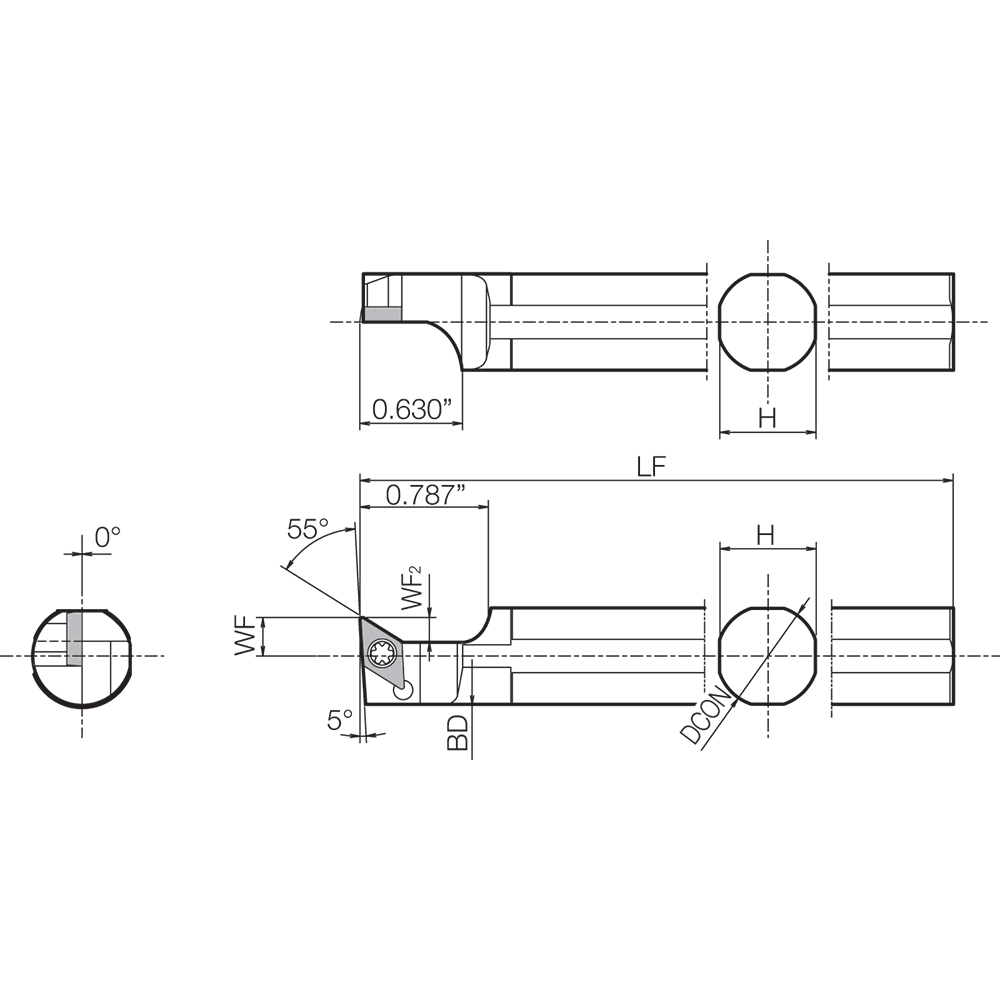

| Shank Height (H) | 0.6693″ | Rake Angle Radial (GAMF) | 7 |
| Shank Width (B) | 0.6693″ | Cutting Depth Maximum (CDX) | 0.2283″ |
| Overall Length (OAL) | 3.5433″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Clamping System | Screw Clamp |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | DCGT325… | DCMX325… | DCMT325… | DCET325… | DCGW325… | DCMW325… | Series/List # | S…SDLC |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Alternate Manufacture # S19GSDLCL11 | Country of Origin | Japan |
Shipping Info
Package Weight
.4542
