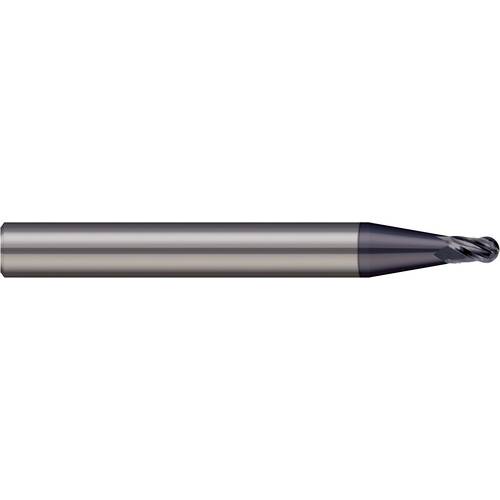

1.5 mm Dia. × 3 mm Shank × 2.2 mm DOC × 38 mm OAL, Carbide Extra Fine , 2 Flute, CW|20° Helix, Ballnose End Mill
| Cutting Diameter (DC) | 1.5 mm | Applicable Material | Hard Materials |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Corner Radius (RE) | 0.75 mm |
| Depth of Cut Maximum (APMX) | 2.2 mm | Neck Length (LN) | 35.3 mm |
| Overall Length (OAL) | 37.5 mm | Tool Type | Ballnose Endmill |
| Cutting Edge Material | Carbide | Length Group | 1.5D |
| Coating | NACRO | End Shape | Ball |
| Flute Count (NOF) | 2 | Flute Type | Extra Fine |
| Flute Helix Angle (FHA) | 20 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| Usable Length (LU) | 2.2 mm |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.02
