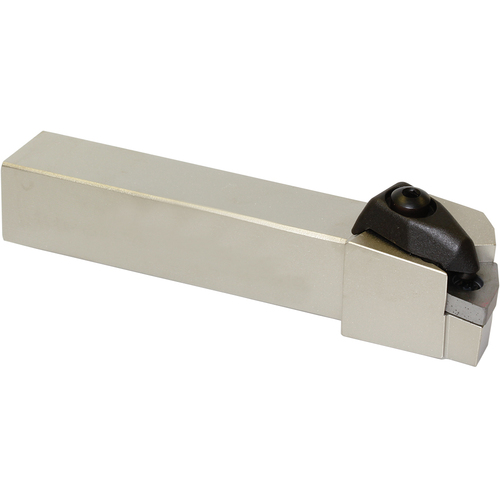

DWLNL 2525M08 INDEX TURN
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 34 mm LH ; Left Hand ; Steel ; Series DWLN

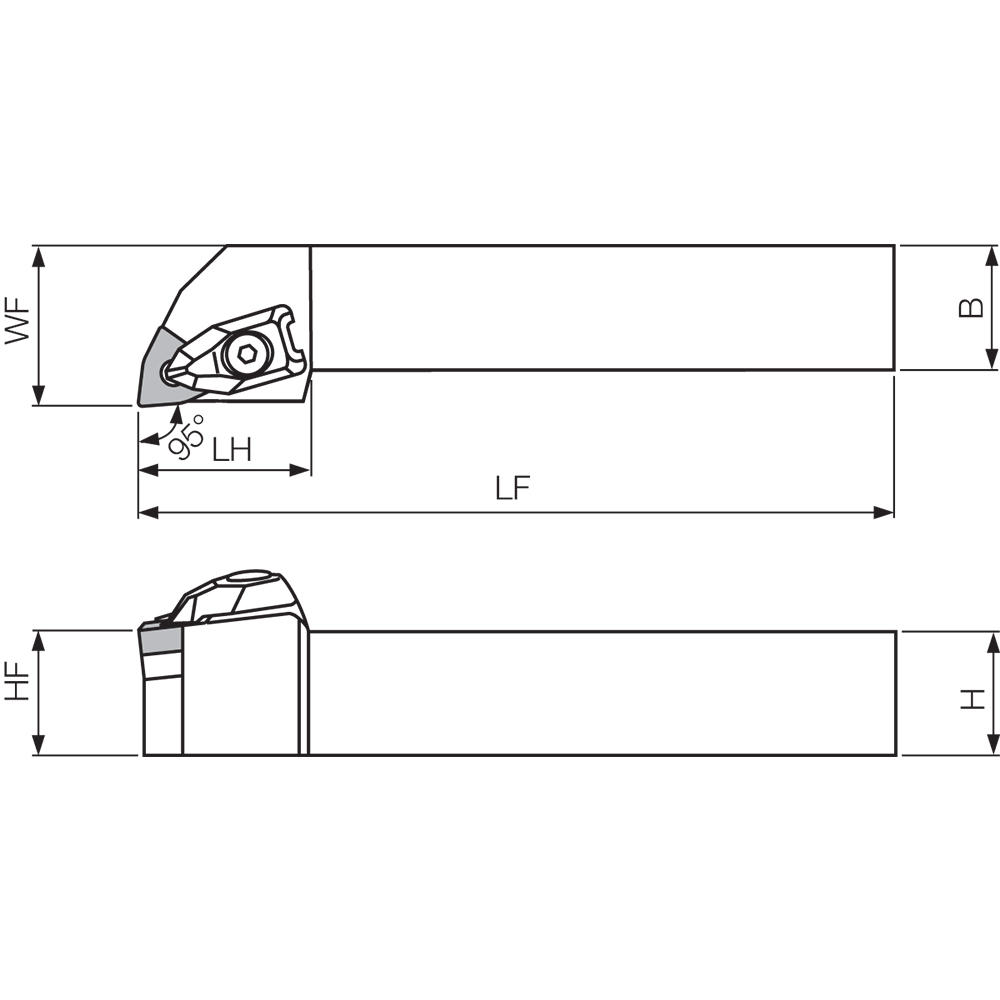

| Shank Height (H) | 25 mm | Application | External Turning | Facing |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 34 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Clamping System | Double Clamp |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | WN_A43… | WN_G43… | WN_M43… | Series/List # | DWLN |
Product Features
| Family Description | Alternate Manufacture # DWLNL2525M08 | Country of Origin | Japan |
Shipping Info
Package Weight
1.8212
