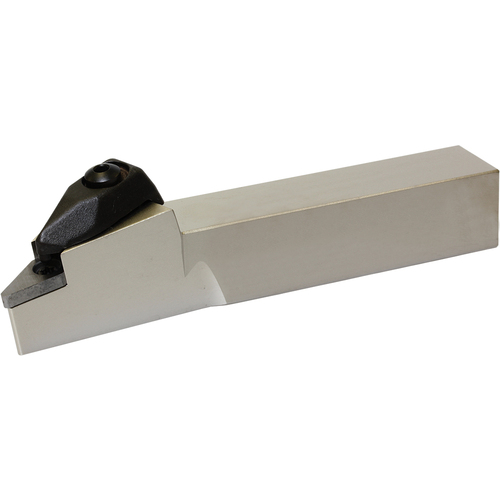

DVLNR 2525M16 INDEX TURN
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 45 mm LH ; Right Hand ; Steel ; Series DVLN
| Shank Height (H) | 25 mm | Application | External Turning | Copying |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 150 mm | Rake Angle Radial (GAMF) | -9 Degrees |
| Head Length (LH) | 45 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.53 mm | Clamping System | Double Clamp |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | VN_A33… | VN_G33… | VN_M33... | Series/List # | DVLN |
Product Features
| Family Description | Alternate Manufacture # DVLNR2525M16 | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.6444
