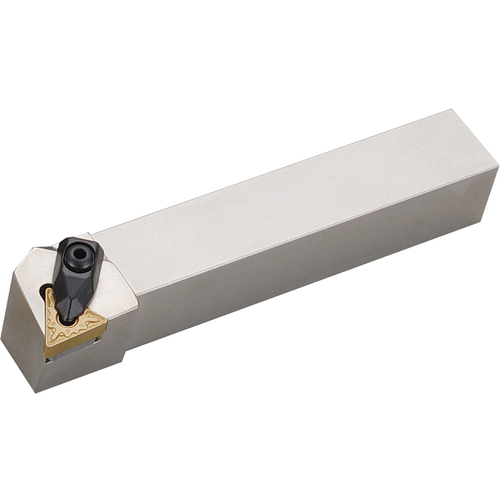

DTGNR 2020K16 INDEX TURN

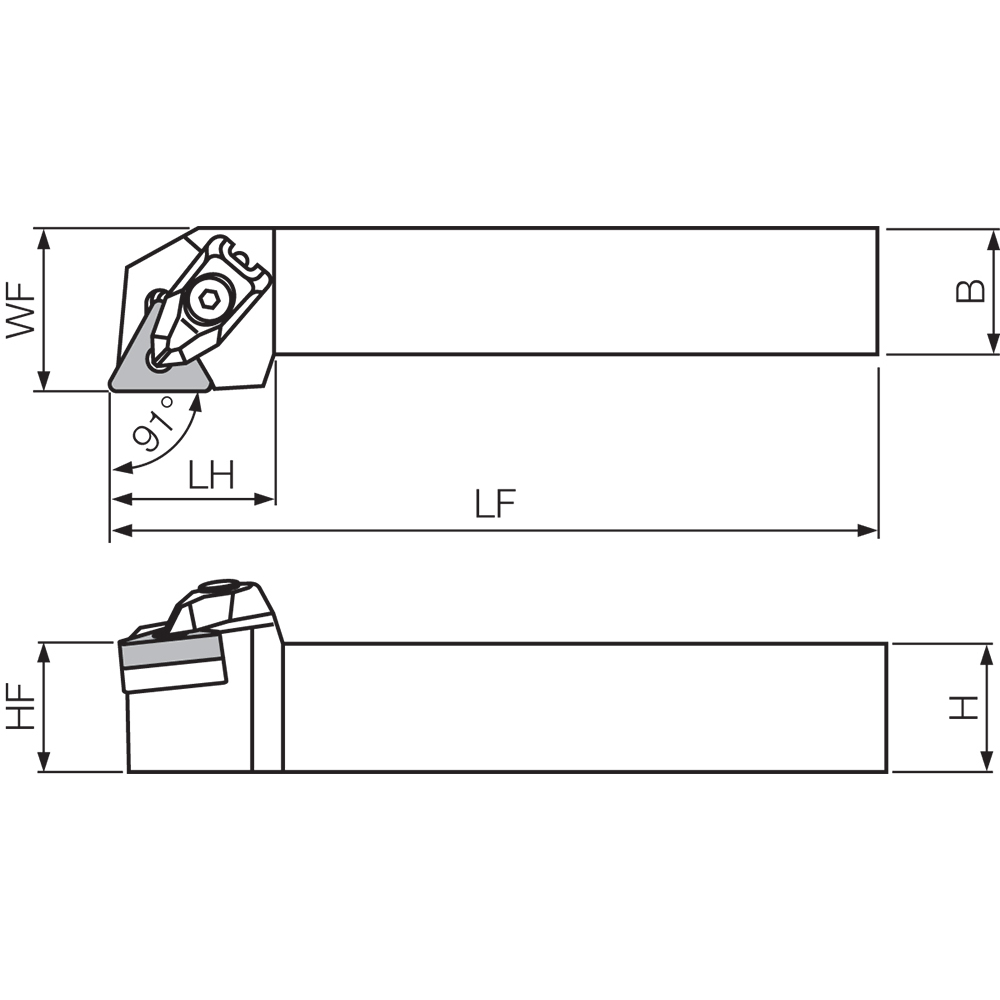

Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 25 mm LH ; Right Hand ; Steel ; Series DTGN
| Shank Height (H) | 20 mm | Application | External Turning |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 125 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 25 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.53 mm | Clamping System | Double Clamp |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | TN_A33… | TN_G33… | TN_M33… | TN_X33… | Series/List # | DTGN |
Product Features
| Family Description | Alternate Manufacture # DTGNR2020K16 | Country of Origin | S.Korea |
Shipping Info
Package Weight
.7498
