DDJNR2020K1504 INDEX TURN

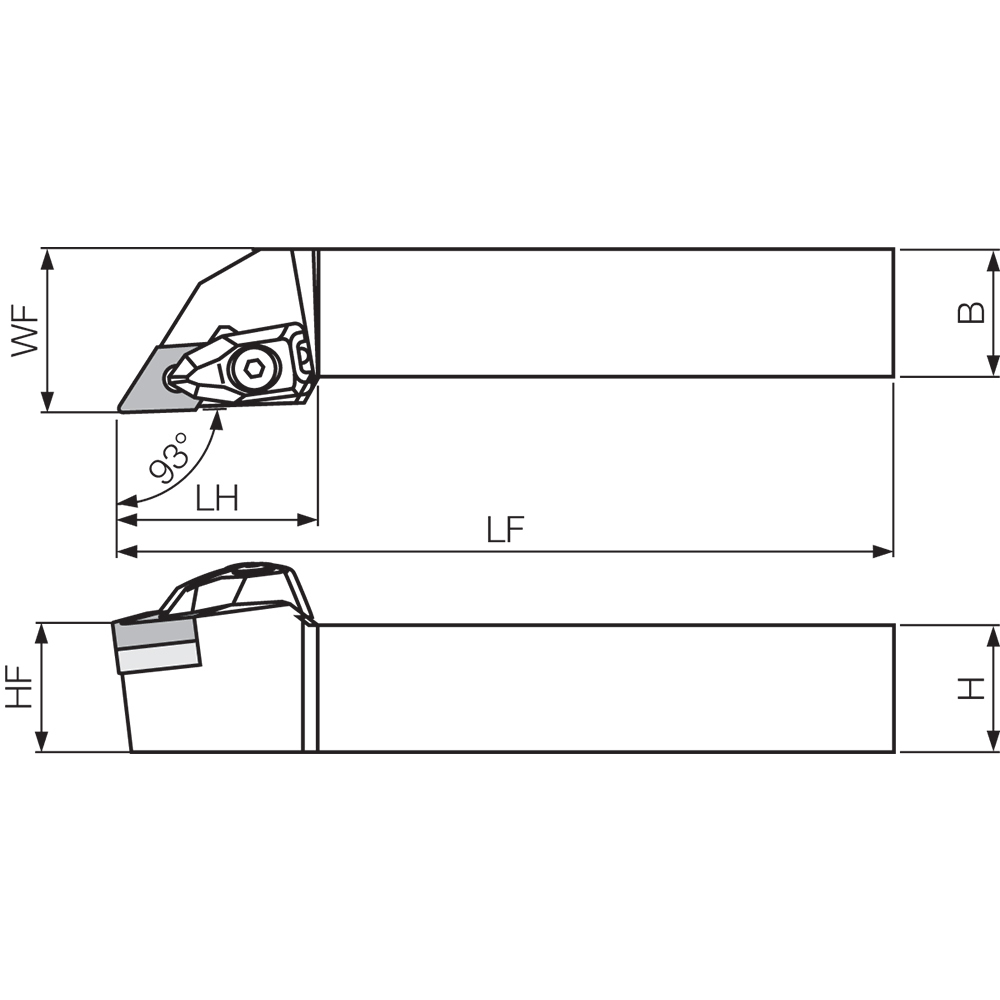

Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 39 mm LH ; Right Hand ; Steel ; Series DDJN
| Shank Height (H) | 20 mm | Application | External Turning | Copying |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 125 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Head Length (LH) | 39 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Clamping System | Double Clamp |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | DN_A43… | DN_G43… | DN_M43… | DN_X43… | Series/List # | DDJN |
Product Features
| Family Description | Alternate Manufacture # DDJNR2020K1504 | Country of Origin | Japan |
Shipping Info
Package Weight
.9416
