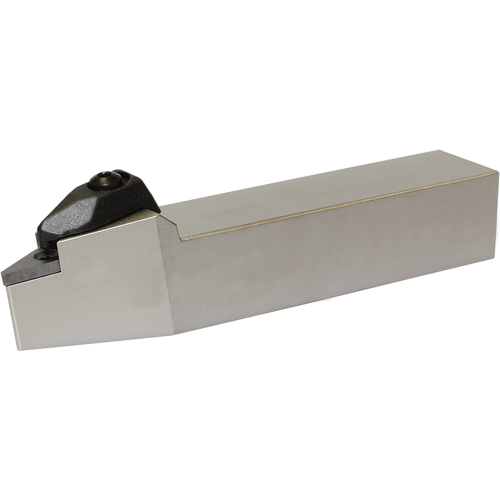

DVVNN 123B INDEXTURN HLDR
Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1.811″ LH ; Neutral ; Steel ; Series DVVN

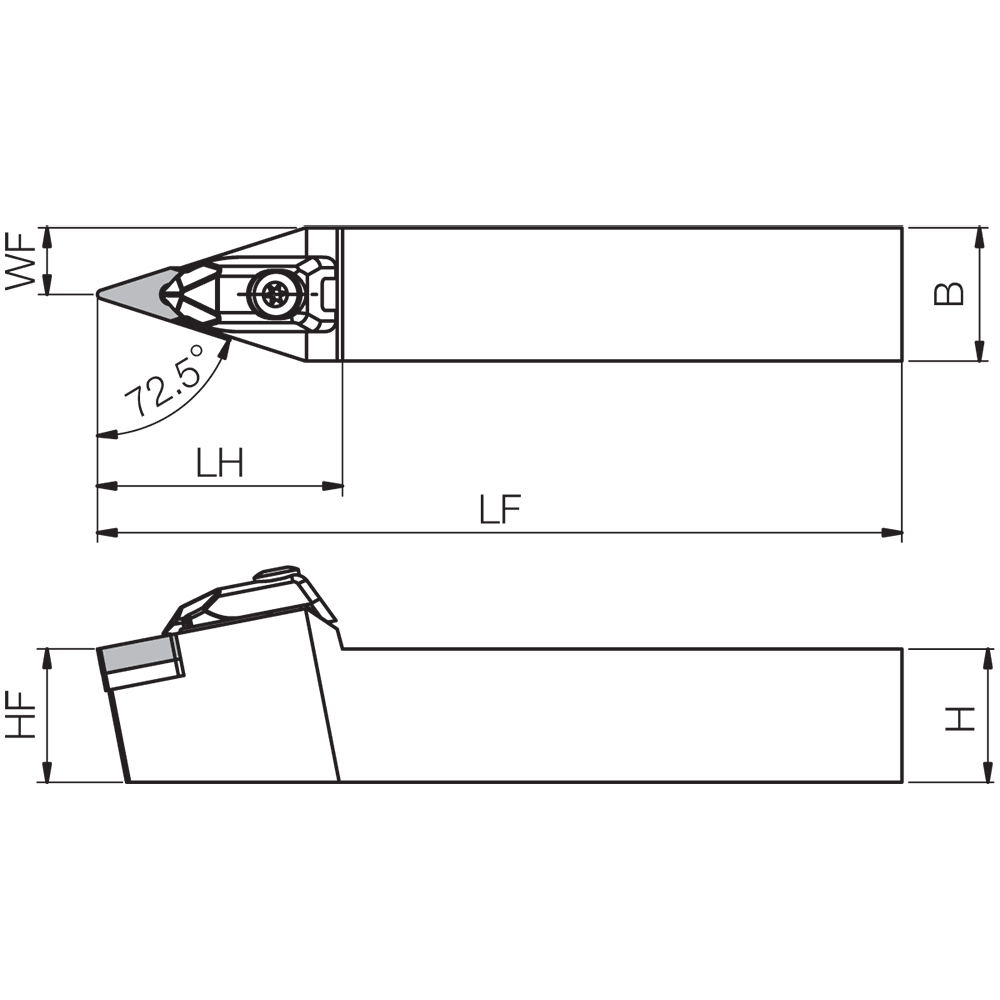

| Shank Height (H) | 3/4″ | Application | External Turning | Copying |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | -11 Degrees |
| Overall Length (OAL) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 1.811″ | Clamping System | Double Clamp |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Series/List # | DVVN |
| Master Insert Identification (MIID) | VN_A33… | VN_G33… | VN_M33... |
Product Features
| Family Description | Alternate Manufacture # DVVNN123B | Country of Origin | S.Korea |
Shipping Info
Package Weight
.8000
