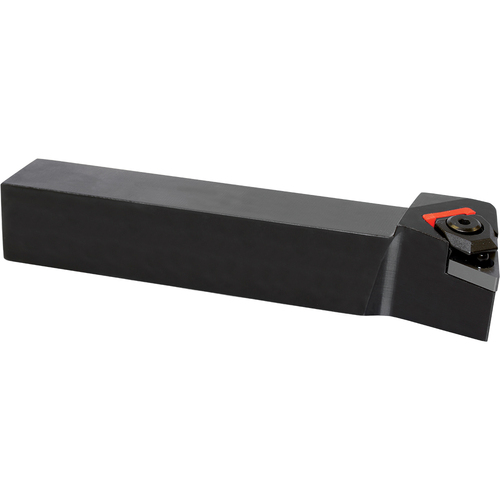

WTKNL 2020K16N INDEX TURN
Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 32 mm LH ; Left Hand ; Steel ; Series WTKN
| Shank Height (H) | 20 mm | Application | External Turning | Facing | Copying |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 125 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 32 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.53 mm | Clamping System | Wedge Lock |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | TN_A33… | TN_G33… | TN_M33… | TN_X33… | Series/List # | WTKN |
Product Features
| Family Description | Alternate Manufacture # WTKNL2020K16N | Country of Origin | Japan |
Shipping Info
Package Weight
1.0140
