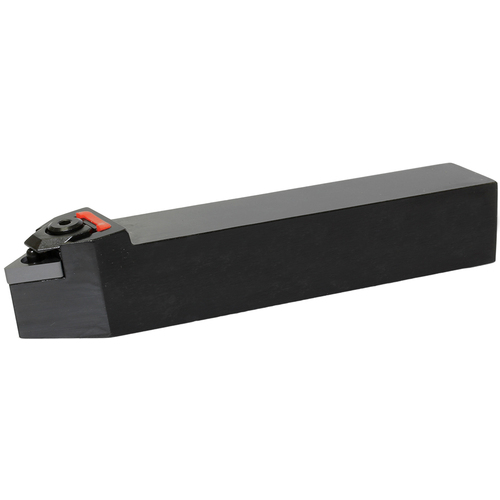

WTENN 2525M16N INDEX TURN
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 32 mm LH ; Neutral ; Steel ; Series WTEN

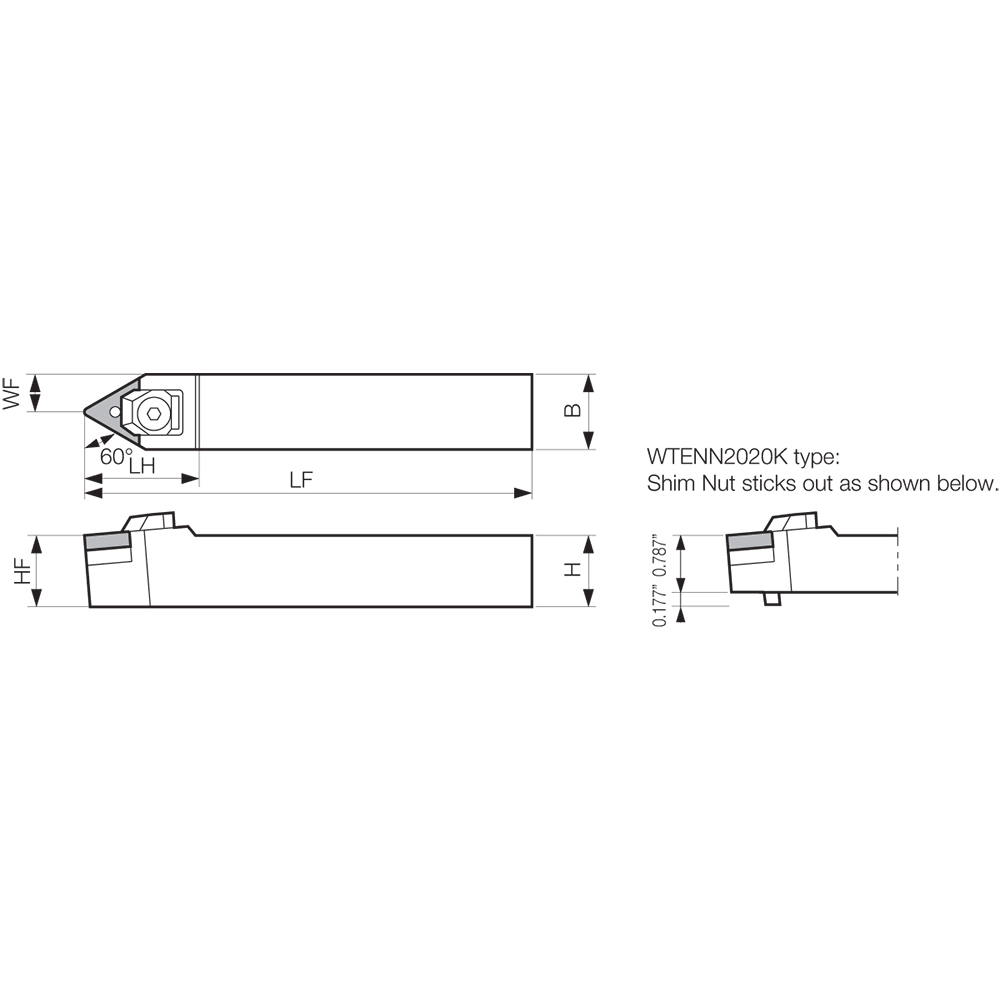

| Shank Height (H) | 25 mm | Application | External Turning | Chamfering |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -8.5 Degrees |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Head Length (LH) | 32 mm | Clamping System | Wedge Lock |
| Inscribed Circle Diameter (IC) | 9.53 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Series/List # | WTEN |
| Master Insert Identification (MIID) | TN_A33… | TN_G33… | TN_M33… | TN_X33… |
Product Features
| Family Description | Alternate Manufacture # WTENN2525M16N | Country of Origin | China |
Shipping Info
Package Weight
1.5812
