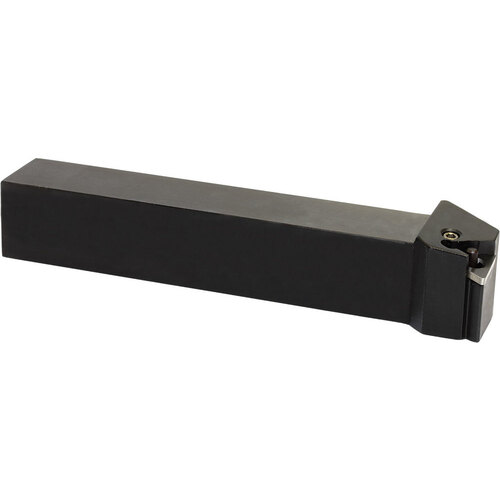

PTFNL 2525M16 INDEX TURN
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 23 mm LH ; Left Hand ; Steel ; Series PTFN

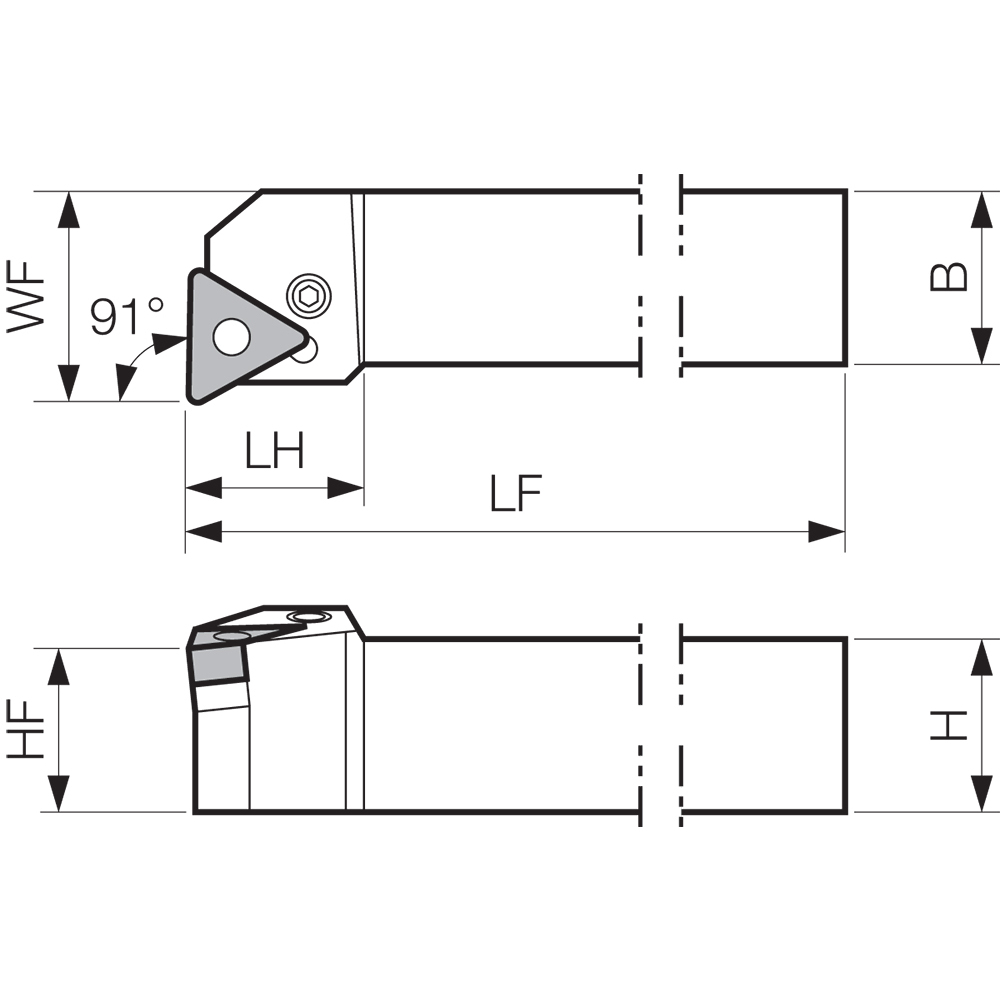

| Shank Height (H) | 25 mm | Application | Facing |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 23 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.53 mm | Clamping System | Lever Lock (Pin Lock) |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | TN_A33… | TN_G33… | TN_M33… | TN_X33… | Series/List # | PTFN |
Product Features
| Family Description | Alternate Manufacture # PTFNL2525M16 | Country of Origin | Japan |
Shipping Info
Package Weight
1.7167
