PSBNL 2525M12 INDEX TURN

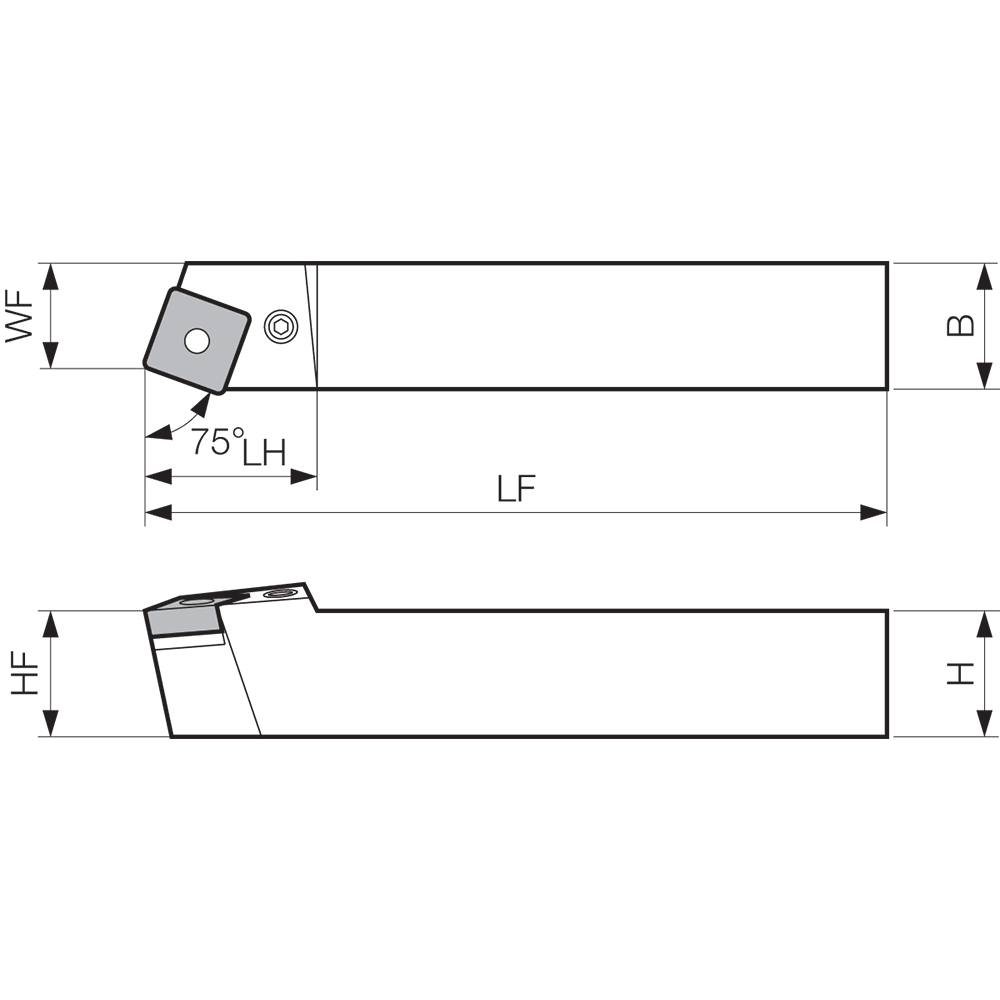

Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 24 mm LH ; Left Hand ; Steel ; Series PSBN
| Shank Height (H) | 25 mm | Application | External Turning |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 24 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Clamping System | Lever Lock (Pin Lock) |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | SN_A43… | SN_G43… | SN_M43… | Series/List # | PSBN |
Product Features
| Family Description | Alternate Manufacture # PSBNL2525M12 | Country of Origin | Japan |
Shipping Info
Package Weight
1.6656
