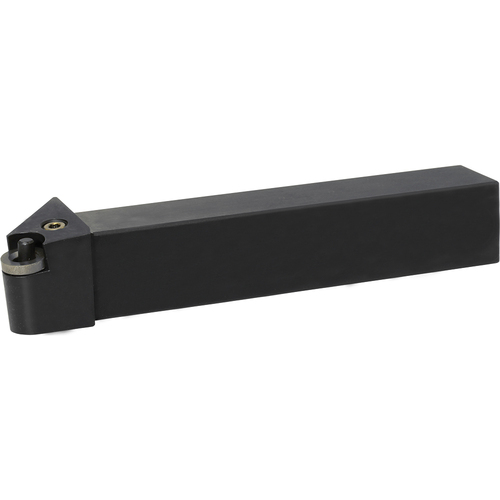

PRGNR 2020K09 INDEX TURN
Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 19 mm LH ; Right Hand ; Steel ; Series PRGN

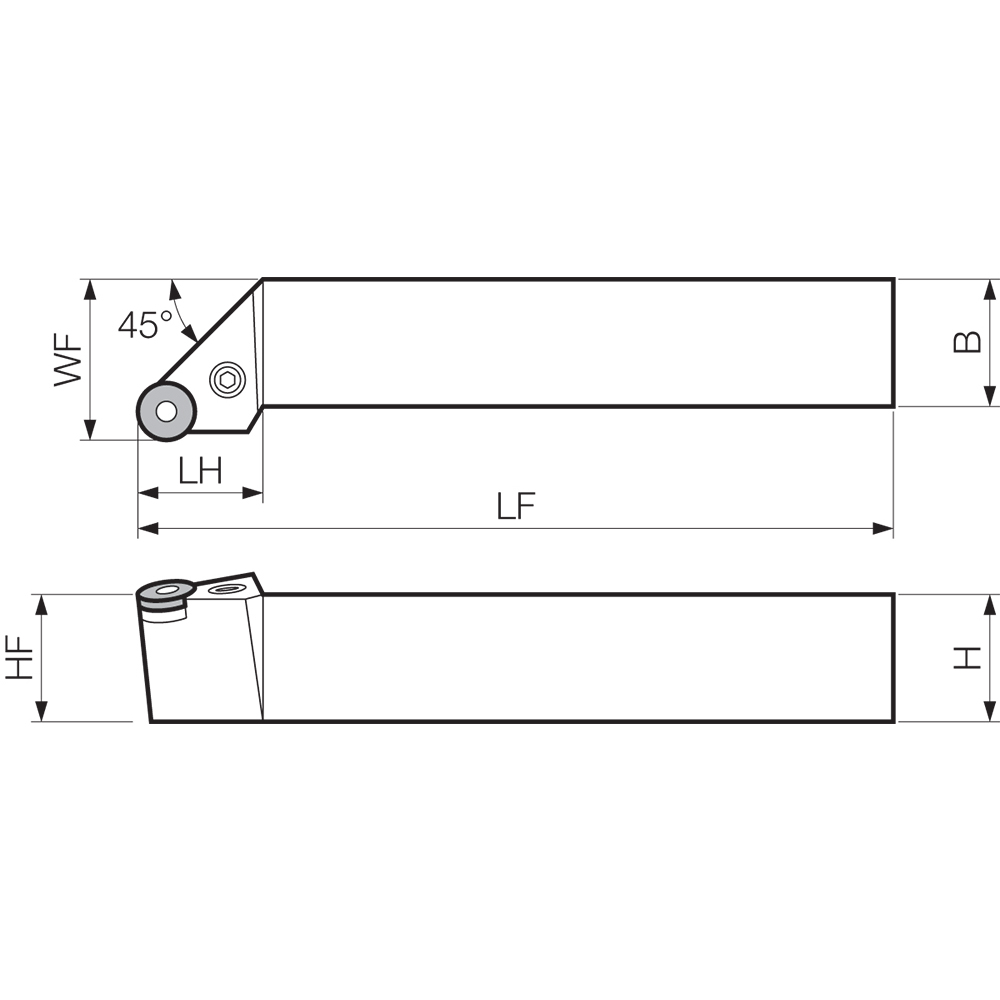

| Shank Height (H) | 20 mm | Application | External Turning | Facing | Undercutting |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 125 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 19 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.53 mm | Clamping System | Lever Lock (Pin Lock) |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | RNMG32 | Series/List # | PRGN |
Product Features
| Family Description | Alternate Manufacture # PRGNR2020K09 | Country of Origin | Japan |
Shipping Info
Package Weight
.9480
