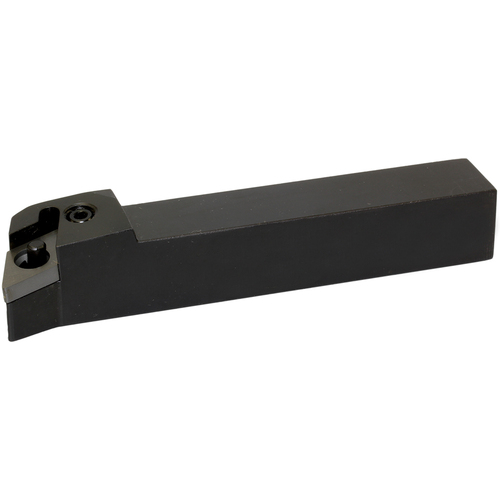

PDHNR 2525M15 INDEX TURN
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 34 mm LH ; Right Hand ; Steel ; Series PDHN
| Shank Height (H) | 25 mm | Application | External Turning | Facing | Copying |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 34 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Clamping System | Lever Lock (Pin Lock) |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | DN_A43… | DN_G43… | DN_M43… | DN_X43… | Series/List # | PDHN |
Product Features
| Family Description | Alternate Manufacture # PDHNR2525M15 | Country of Origin | Japan |
Shipping Info
Package Weight
1.7345
