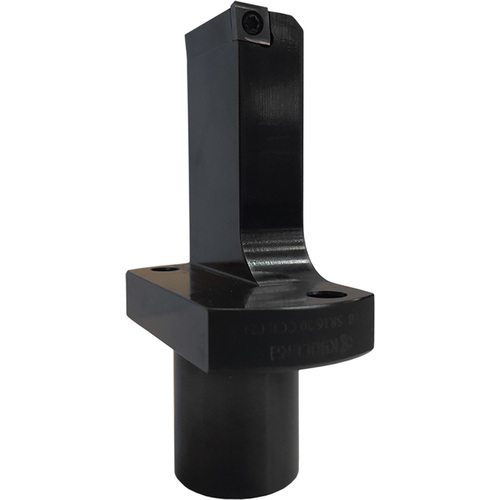

KSTB SR1620CCET325
Turning Toolholder; 3.323″ OAL × 0.8661″ Shank Dia. × 2-1/4″ LH ; Right Hand ; Steel ; Series KSTB

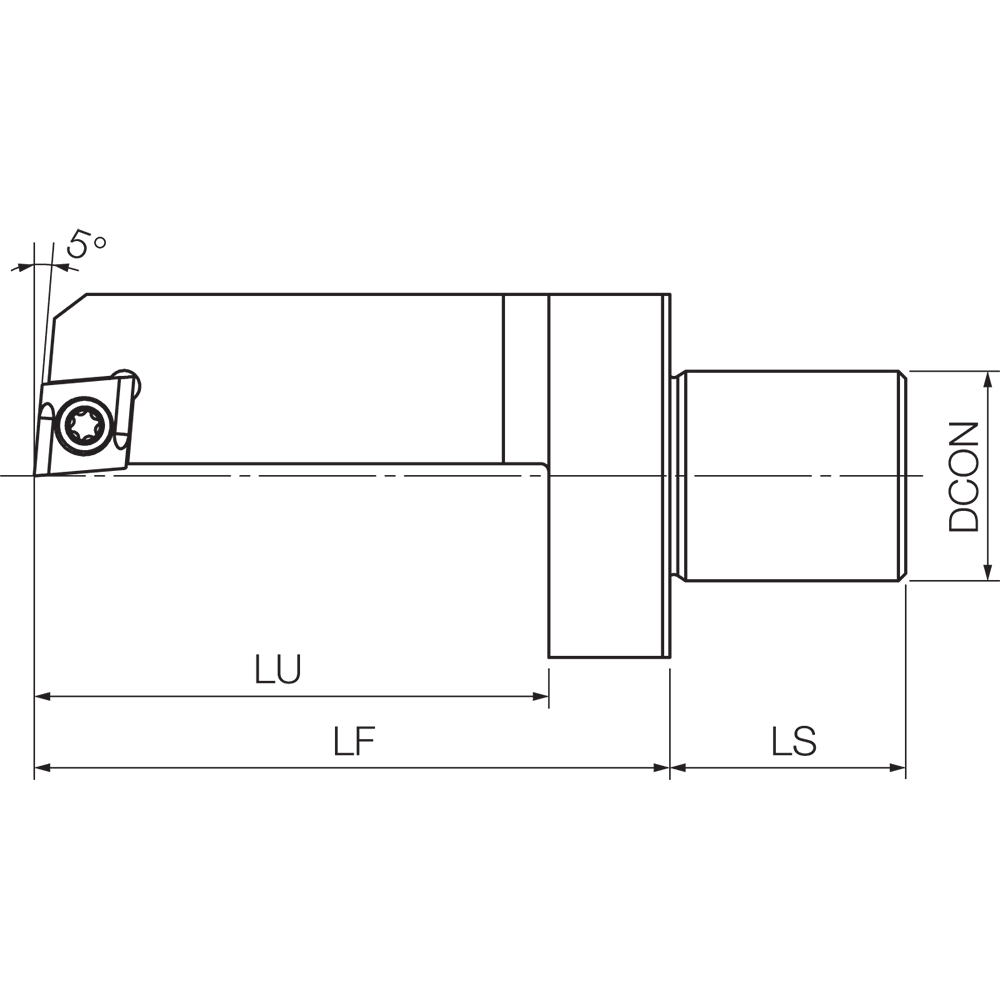

| Overall Length (OAL) | 3.323″ | Rake Angle Radial (GAMF) | 7 Degrees |
| Head Length (LH) | 2-1/4″ | Body Diameter (BD) | 2″ |
| Functional Width (WF) | 1.1″ | Usable Length (LU) | 1-7/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.8661″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ | Clamping System | Screw Clamp |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | CCET325... | CCGT325… | Series/List # | KSTB |
| Application | Sub-Spindle Turning for STAR Machines |
Product Features
| Family Description | Alternate Manufacture # KSTBSR1620CCET325 | Country of Origin | USA |
Shipping Info
Package Weight
.7500
