KSTB SR32JVBET22

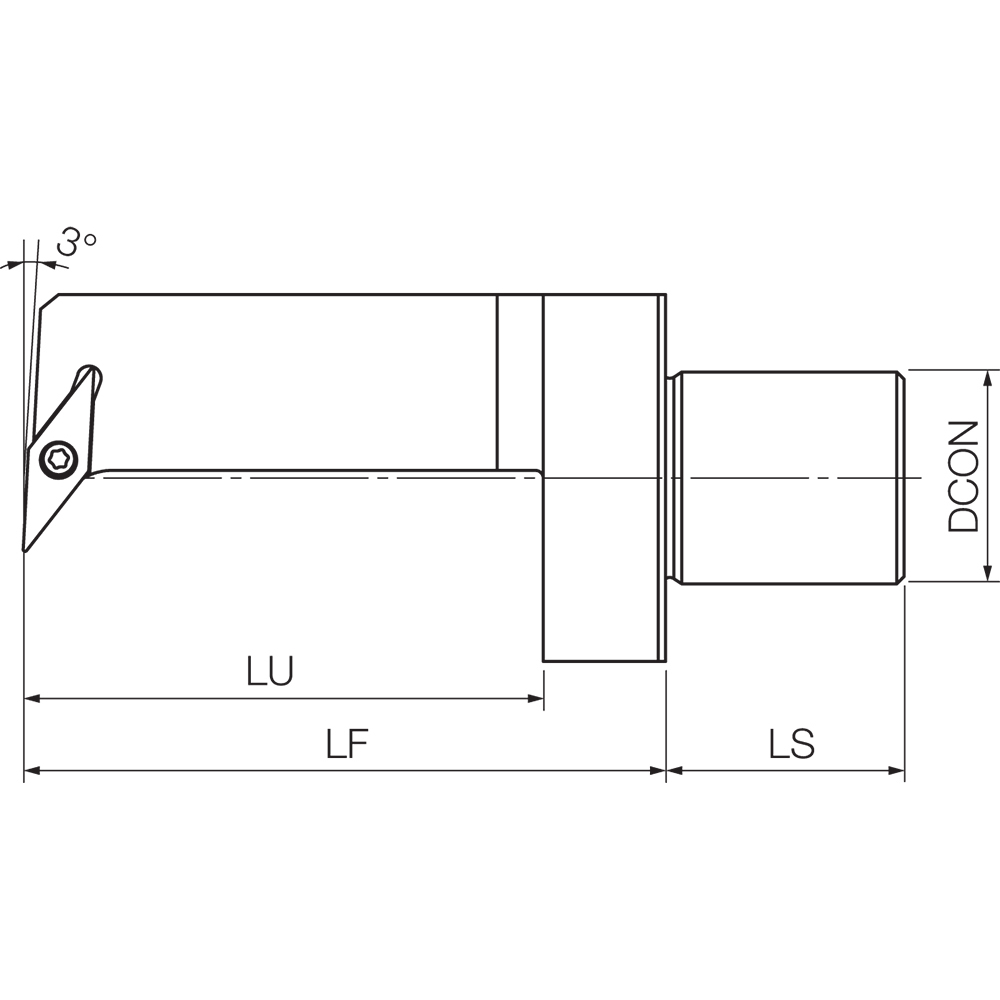

Turning Toolholder; 3.605″ OAL × 0.8661″ Shank Dia. × 2-5/8″ LH ; Right Hand ; Steel ; Series KSTB
| Overall Length (OAL) | 3.605″ | Rake Angle Radial (GAMF) | 5 Degrees |
| Head Length (LH) | 2-5/8″ | Body Diameter (BD) | 2″ |
| Functional Width (WF) | 1-1/2″ | Usable Length (LU) | 2-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.8661″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 1/4″ | Clamping System | Screw Clamp |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | VBET22… | Series/List # | KSTB |
| Application | Sub-Spindle Turning for STAR Machines |
Product Features
| Family Description | Alternate Manufacture # KSTBSR32JVBET22 | Country of Origin | USA |
Shipping Info
Package Weight
.7500
