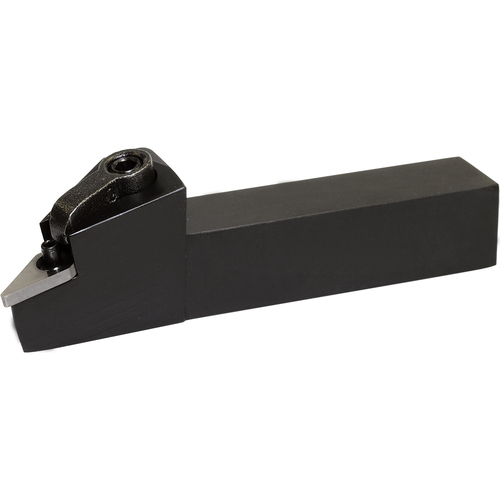

MVJNR 123B INDEXTURN HLDR

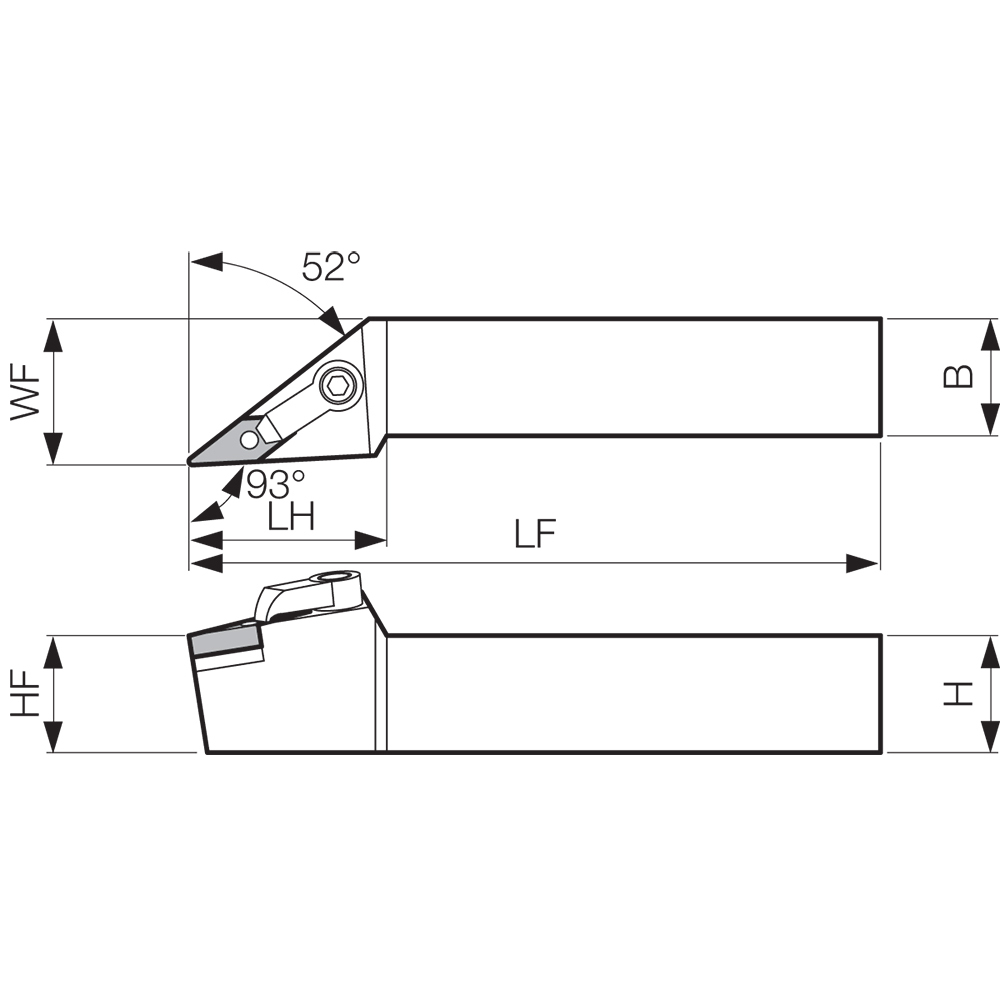

Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1.69″ LH ; Right Hand ; Steel ; Series MVJN
| Shank Height (H) | 3/4″ | Application | External Turning | Copying |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 4-1/2″ | Rake Angle Radial (GAMF) | -9 Degrees |
| Head Length (LH) | 1.69″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ | Clamping System | Multi-Lock Clamp and Lock Pin |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | VN_A33… | VN_G33… | VN_M33... | Series/List # | MVJN |
Product Features
| Family Description | Alternate Manufacture # MVJNR123B | Country of Origin | USA |
Shipping Info
Package Weight
0.75
