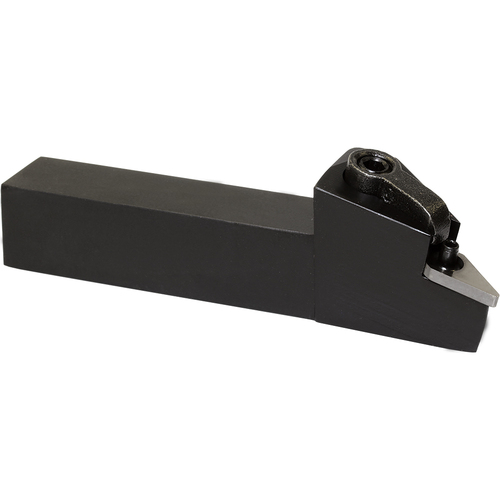

MVJNL 163C INDEXTURN HLDR
Turning Toolholder; 5″ OAL × 1″ Shank Height × 1″ Shank Width × 1.69″ LH ; Left Hand ; Steel ; Series MVJN
| Shank Height (H) | 1″ | Application | External Turning | Copying |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 5″ | Rake Angle Radial (GAMF) | -9 Degrees |
| Head Length (LH) | 1.69″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ | Clamping System | Multi-Lock Clamp and Lock Pin |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | VN_A33… | VN_G33… | VN_M33... | Series/List # | MVJN |
Product Features
| Family Description | Alternate Manufacture # MVJNL163C | Country of Origin | USA |
Shipping Info
Package Weight
1.4
