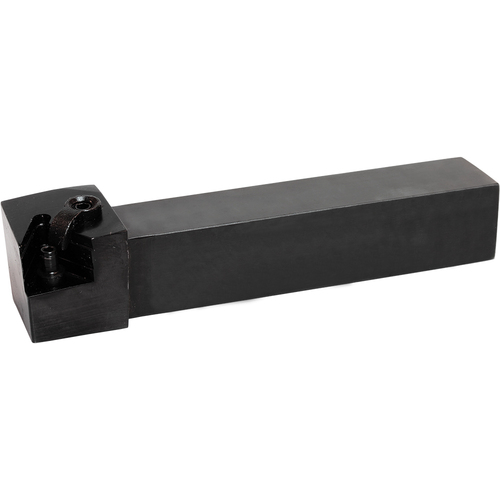

MTGNR 123B INDEXTURN HLDR

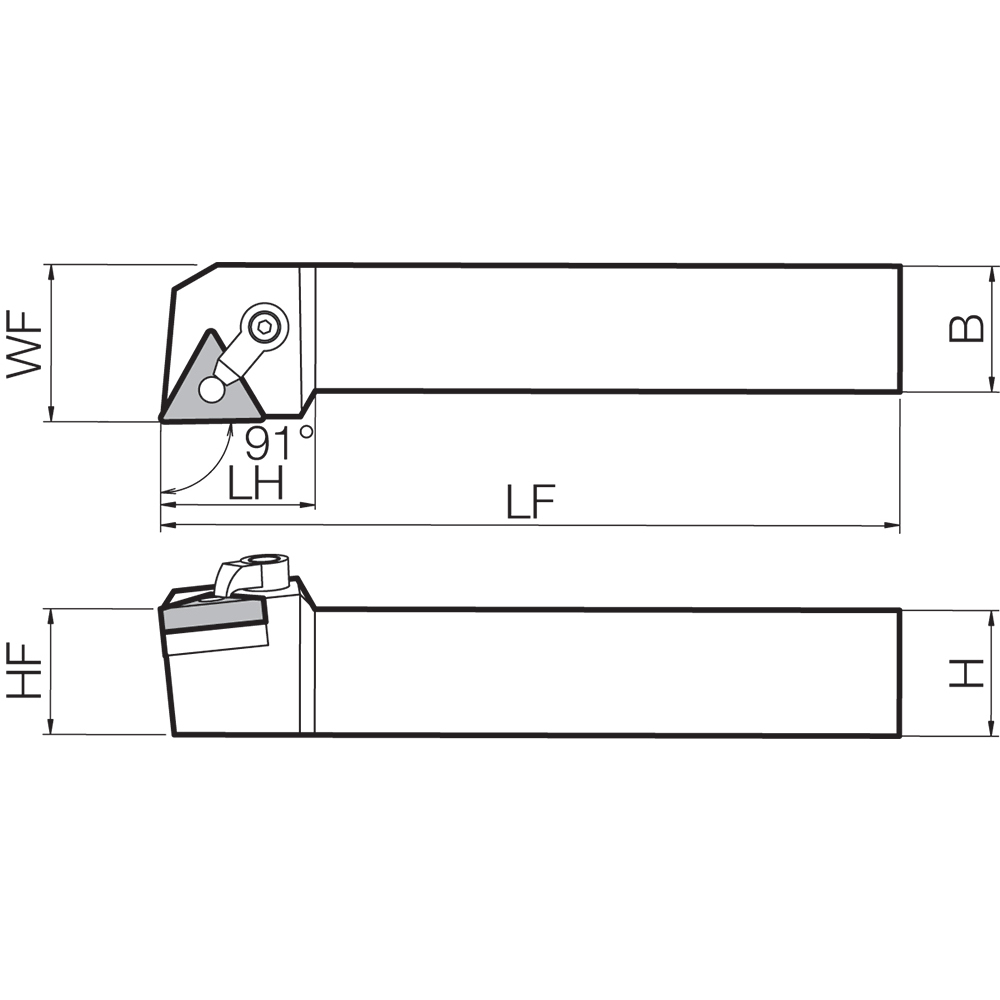

Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 0.94″ LH ; Right Hand ; Steel ; Series MTGN
| Shank Height (H) | 3/4″ | Application | External Turning |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | -5 Degrees |
| Overall Length (OAL) | 4-1/2″ | Rake Angle Radial (GAMF) | -5 Degrees |
| Head Length (LH) | 0.94″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ | Clamping System | Multi-Lock Clamp and Lock Pin |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | TN_A33… | TN_G33… | TN_M33… | TN_X33… | Series/List # | MTGN |
Product Features
| Family Description | Alternate Manufacture # MTGNR123B | Country of Origin | USA |
Shipping Info
Package Weight
.8500
