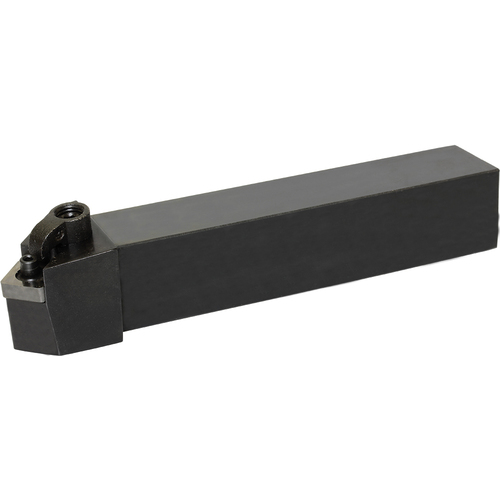

MSSNR 164D INDEXTURN HLDR

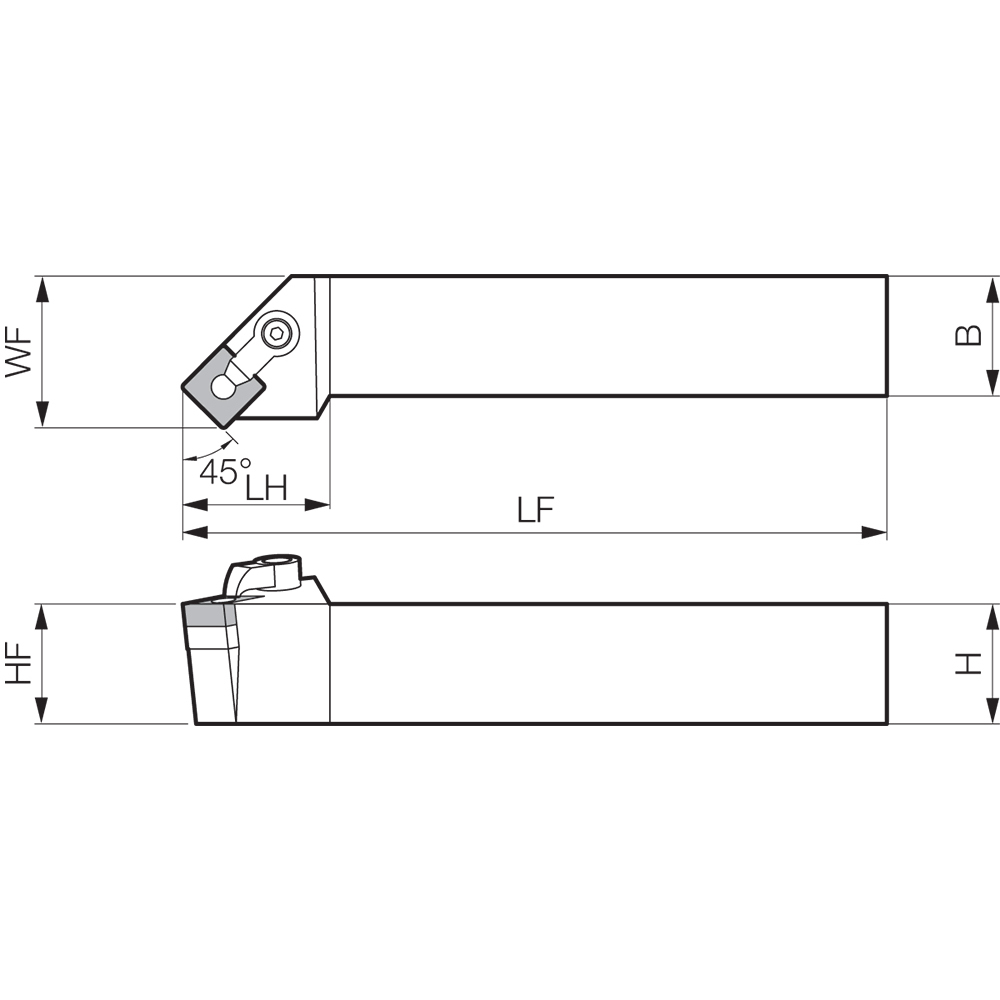

Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1.23″ LH ; Right Hand ; Steel ; Series MSSN
| Shank Height (H) | 1″ | Application | External Turning | Facing | Chamfering |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | -8 Degrees |
| Overall Length (OAL) | 6″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 1.23″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 1/2″ | Clamping System | Multi-Lock Clamp and Lock Pin |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | SN_A43… | SN_G43… | SN_M43… | Series/List # | MSSN |
Product Features
| Family Description | Alternate Manufacture # MSSNR164D | Country of Origin | USA |
Shipping Info
Package Weight
1.7500
