MDJNL 124B INDEXTURN HLDR

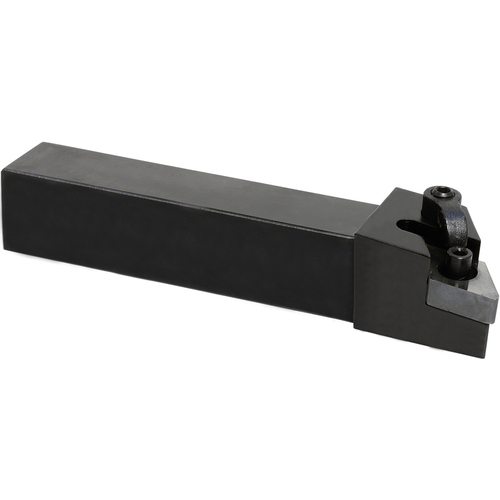

Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1 1/4″ LH ; Left Hand ; Steel ; Series MDJN
| Shank Height (H) | 3/4″ | Application | External Turning | Copying |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 4-1/2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 1 1/4″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 1/2″ | Clamping System | Multi-Lock Clamp and Lock Pin |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | DN_A43… | DN_G43… | DN_M43… | DN_X43… | Series/List # | MDJN |
Product Features
| Family Description | Alternate Manufacture # MDJNL124B | Country of Origin | USA |
Shipping Info
Package Weight
.8000
