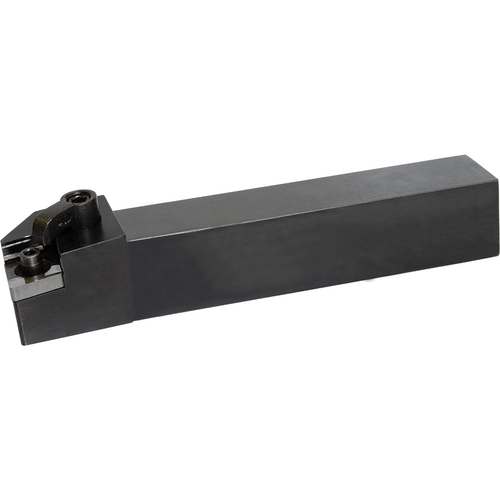

MCLNR 124B INDEXTURN HLDR
Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1.19″ LH ; Right Hand ; Steel ; Series MCLN
| Shank Height (H) | 3/4″ | Application | External Turning | Facing |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 4-1/2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 1.19″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 1/2″ | Clamping System | Multi-Lock Clamp and Lock Pin |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | CN_A43… | CN_G43… |CN_M43… | Series/List # | MCLN |
Product Features
| Family Description | Alternate Manufacture # MCLNR124B | Country of Origin | USA |
Shipping Info
Package Weight
0.85
