PVLNR 2525M16Q INDEX TURN

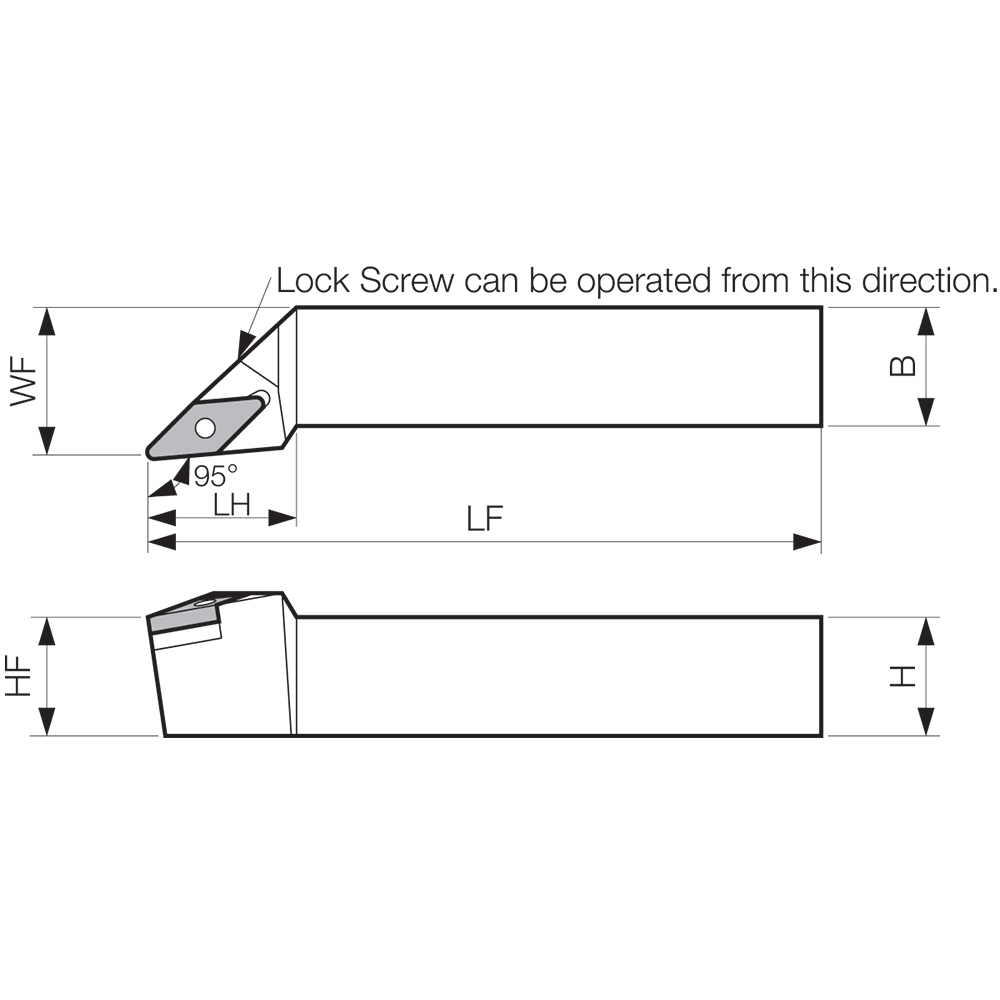

Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 37 mm LH ; Right Hand ; Steel ; Series PVLN
| Shank Height (H) | 25 mm | Application | External Turning | Copying |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 150 mm | Rake Angle Radial (GAMF) | -9 Degrees |
| Head Length (LH) | 37 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.53 mm | Clamping System | Lever Lock (Pin Lock) |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | VN_A33… | VN_G33… | VN_M33... | Series/List # | PVLN |
Product Features
| Family Description | Alternate Manufacture # PVLNR2525M16Q | Country of Origin | Japan |
Shipping Info
Package Weight
1.5884
