SGSA 50-3-8K
Slitting cutters Carrying GSAN self-clamped inserts.

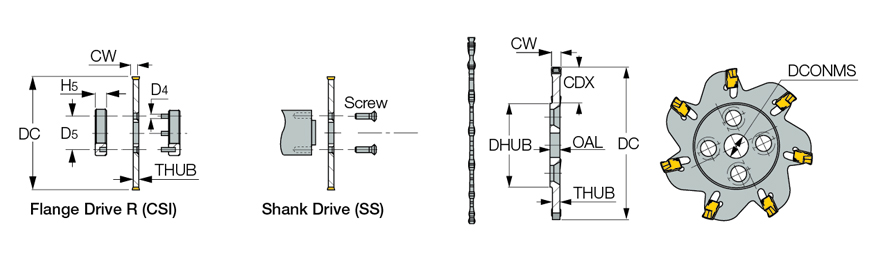

| Cutting Diameter (DC) | 1.969″ | Master Insert Identification (MIID) | GSAN 3 |
| Cutting Item Count (CICT) | 7 | Application | | Side Slotting | Slitting | T Slotting | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Rotational Speed Maximum (RPMX) | 1600 Rev/min |
| Cutting Depth Maximum (CDX) | 0.413″ | Tool Type | Slitting cutters |
| Hub Diameter (DHUB) | 1.063″ | Measurement Type | Inch |
| Hub Thickness (THUB) | 0.094″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.139″ | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 0.106″ |
Product Features
| Family Description | Slitting cutters Carrying GSAN self-clamped inserts. | Country of Origin | Israel |
| Remarks | For LB,DBS,D4 refer to SW/S drive shanks and R drive flange set Maximum RPM may not be exceeded |
Shipping Info
Package Weight
0.218
