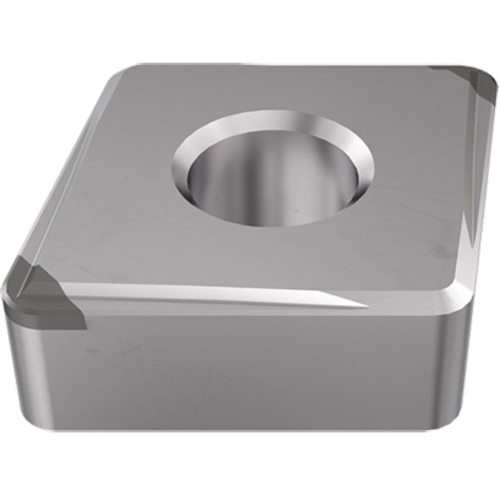

CNGG 433HS-2MTM IB22HC
| Application | | Ext. 80° Diamond 95° Approach | | Tool Type | Turn Ultra hard Inserts |
| Insert Style | CNGG | Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.039″ |
| Insert Size | 433 | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 0.508″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Grade | IB22HC | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.203″ | Body Material | Carbide |
Product Features
| Family Description | Negative 80° rhombic inserts with 2 CBN mini tip with chipbreaker for removal of scale and carburized layer for hardened steel | Country of Origin | Japan |
