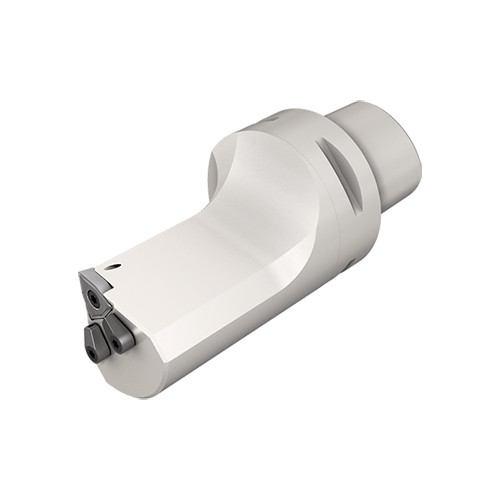

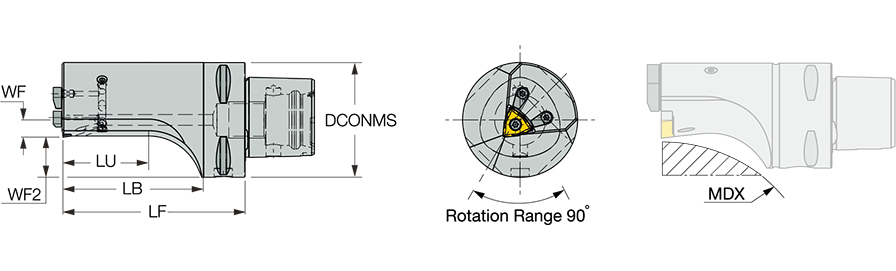

C4 SWLCN-08-SL-H65-Y
| Overall Length (OAL) | 3.524″ | Master Insert Identification (MIID) | WCMT 08T504-F3P-SL |
| Functional Length (LF) | 2.559″ | Application | | Y Axis Variable Approach angle | |
| Functional Width (WF) | 0.298″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Tool Type | Tapered Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Y-Axis Turning Tools that Mount 80° Trigon Inserts with a 7°Clearance Angle | Country of Origin | Israel |
| Remarks | For Depth of cut vs. position angle examples click on More Info For shank dimensions, click on More Info. |
Shipping Info
Package Weight
1.338
