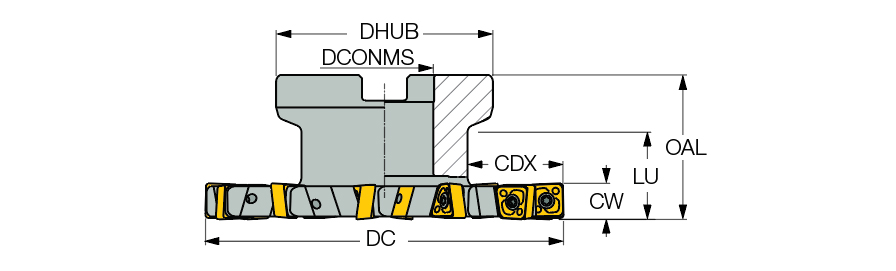

FDN D5.0-0.50-10-XN09
| Cutting Diameter (DC) | 5″ | Overall Length (OAL) | 2″ |
| Cutting Item Count (CICT) | 14 | Master Insert Identification (MIID) | XNMU 0904... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 1-3/8″ | Arbor Style | B |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 2.56″ | Measurement Type | Inch |
| Cutting Width (CW) | 1/2″ | Body Material | Steel |
| Usable Length (LU) | 1-1/2″ |
Product Features

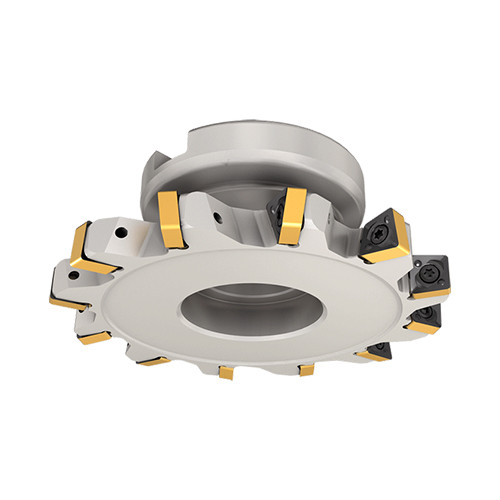

| Family Description | Full slot flange type, slotting cutters carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
3.170
